Understanding the Battery Inside a UPS

An uninterruptible power supply (UPS) protects connected equipment by providing temporary battery power when normal electrical service is interrupted. While the electronics inside the UPS are important, the battery itself determines how long the connected devices can continue operating during a power outage.

Like every rechargeable battery, a UPS battery gradually loses capacity as it ages. Even if the UPS appears to function normally, its available backup time may become much shorter than when it was new.

The Battery Is a Wear Item

Unlike the electronic circuitry inside the UPS, the battery is considered a consumable component. It is expected to be replaced periodically throughout the life of the unit.

Many UPS systems remain in service for years with multiple battery replacements, making routine battery maintenance far less expensive than replacing the entire unit.

Most UPS Systems Use Sealed Lead-Acid Batteries

Many desktop and small office UPS units use sealed lead-acid (SLA) batteries because they provide dependable backup power, require little maintenance, and remain relatively affordable.

These batteries are sealed and designed for indoor use under normal operating conditions. Although newer battery technologies exist, sealed lead-acid batteries continue to be widely used in computer backup systems.

Battery Capacity Decreases Over Time

Each charging and discharging cycle causes a small amount of battery wear. Even a UPS that rarely experiences power outages slowly loses capacity simply because the battery ages chemically.

Eventually, the battery reaches a point where it can no longer provide useful backup time despite remaining fully charged according to the UPS.

Expected Service Life Varies

Battery life depends on several operating conditions rather than a fixed calendar date. Temperature, charging conditions, electrical load, and the frequency of power outages all influence how long the battery remains reliable.

• Operating temperature
• Charging quality
• Frequency of discharge cycles
• Overall electrical load
• Battery manufacturing quality

Heat Is One of the Biggest Factors

High temperatures accelerate the chemical aging of rechargeable batteries. A UPS placed near heating vents, direct sunlight, enclosed cabinets, or other heat-producing equipment may lose battery capacity much faster than one operating in a cooler environment.

Maintaining normal room temperatures helps extend battery life and improve long-term reliability.

Frequent Power Outages Increase Battery Wear

Each time the UPS switches to battery power, a discharge cycle occurs. Areas with frequent electrical interruptions naturally place more wear on the battery than locations with stable electrical service.

Although UPS batteries are designed for repeated use, more frequent discharge cycles generally shorten their overall service life.

Backup Runtime Gradually Becomes Shorter

Battery aging is usually noticed through reduced runtime rather than complete failure. A UPS that originally powered a desktop computer for several minutes may eventually provide only enough time to save work and shut down safely.

This gradual decline often occurs so slowly that users may not notice until a real power outage reveals the reduced battery capacity.

A Healthy Battery Does Not Provide Unlimited Runtime

Even a brand-new UPS battery is intended to provide temporary backup power rather than hours of continuous operation. The primary purpose of most desktop UPS systems is to allow work to be saved, prevent sudden shutdowns, and give enough time for an orderly shutdown of connected equipment.

The expected runtime depends on both the battery capacity and the amount of electrical power being consumed by the connected devices.

Electrical Load Has a Major Effect on Runtime

A lightly loaded UPS can generally provide backup power much longer than one operating close to its maximum rated capacity. Adding additional equipment reduces the amount of time the battery can sustain all connected devices.

Connected Load	General Effect on Backup Runtime
Light load	Longer runtime
Moderate load	Balanced runtime
Heavy load	Shorter runtime

Not Every Outlet Uses Battery Backup

Many UPS units include two groups of outlets. Some provide both surge protection and battery backup, while others provide surge protection only. Devices that require continued operation during a power outage should always be connected to the battery-backed outlets.

Understanding which outlets receive battery power helps ensure that important equipment remains protected when electrical service is interrupted.

Monitors Can Consume a Significant Share of the Load

A desktop computer is often connected to the UPS along with one or more monitors. Depending on their size, brightness, and technology, the displays may use a noticeable portion of the available battery capacity.

Connecting several monitors can reduce backup time substantially, especially when the UPS was originally selected for a lighter equipment load.

High-Performance Computers Reduce Runtime Faster

Gaming computers, workstations, and systems with powerful graphics cards can draw much more electricity than ordinary office desktops. Their power usage may also change considerably between idle operation and demanding workloads.

A UPS that provides reasonable runtime while the computer is idle may deliver far less time when the processor and graphics card are under a heavy load.

The UPS Rating Must Match the Connected Equipment

UPS capacity is commonly described using volt-amperes and watts. These ratings are related but should not be treated as identical. The connected equipment must remain within the UPS manufacturer’s supported wattage limit.

Choosing a unit based only on the volt-ampere number can lead to an incorrect estimate of how much equipment the UPS can safely support.

Overloading Can Cause Immediate Shutdown

If the electrical demand exceeds the UPS capacity, the unit may sound an alarm, display an overload warning, or shut down when utility power is lost. In this situation, even a healthy battery may be unable to support the connected devices.

Removing unnecessary equipment or selecting a higher-capacity UPS may be required to achieve reliable backup operation.

Printers Should Usually Remain Off Battery-Backed Outlets

Laser printers can draw a large amount of power when their heating components activate. Connecting one to a battery-backed outlet can overload a small UPS or reduce the available runtime for the computer.

Printers and other high-demand devices should generally be connected according to the UPS manufacturer’s instructions rather than added automatically to the battery-backed outlets.

Battery Runtime Estimates Are Not Exact

Some UPS units or management programs display an estimated number of minutes remaining. This value is calculated from battery condition and current electrical load rather than measured as a guaranteed amount of time.

If the computer begins a demanding task or another connected device increases its power use, the estimate can fall rapidly.

A Full Charge May Take Several Hours

After a UPS is first installed or after the battery has been discharged, it may require several hours to recharge fully. Backup runtime can remain limited during this period even though the unit is connected to normal electrical service.

A newly installed replacement battery should be allowed to charge according to the manufacturer’s instructions before its runtime is evaluated.

Repeated Outages Can Prevent a Complete Recharge

When power interruptions occur close together, the battery may not have enough time to recover between events. Each outage can begin with less available capacity than the one before it.

This can make a healthy UPS appear unreliable even though the battery is simply operating before its previous charge has been restored.

Self-Tests Help Identify Weak Batteries

Many UPS units perform automatic self-tests or provide a button that starts a manual test. During this process, the unit briefly checks whether the battery can support the connected load.

A failed self-test may trigger a warning light, alarm, display message, or software notification indicating that the battery requires attention.

A Passed Self-Test Does Not Guarantee Full Runtime

A battery may still pass a short self-test while providing much less runtime than it delivered when new. The test confirms basic operation but may not measure the battery under a prolonged real-world load.

For systems that require dependable shutdown time, battery age and observed runtime should be considered along with the self-test result.

Warning Alarms Should Not Be Ignored

A UPS may use different alarm patterns for battery operation, overload conditions, internal faults, and battery replacement warnings. These sounds are not always interchangeable.

The manual for the specific UPS should be reviewed so the warning can be interpreted correctly before the battery or entire unit is replaced.

Management Software Can Reveal Useful Information

Many UPS systems can communicate with a computer through USB or a network connection. Compatible software may display the estimated load, battery charge, runtime, recent power events, and battery replacement status.

This information can help distinguish an aging battery from an overloaded UPS or a problem with incoming electrical service.

Automatic Shutdown Protects the Operating System

UPS management software can be configured to shut down the computer automatically when the battery reaches a defined level. This helps prevent the system from remaining on until the battery is completely exhausted.

The shutdown threshold should leave enough time for applications to close and the operating system to complete its normal shutdown process.

Battery Replacement Warnings Can Be Based on Age

Some UPS systems estimate battery condition partly from the installation date and expected service life. A replacement warning may appear even when the unit continues to provide some backup power.

This warning should be treated as an indication that dependable runtime may no longer be guaranteed rather than proof that the battery has already stopped working completely.

Physical Changes Can Indicate Battery Failure

A failing sealed battery may swell, leak, develop corrosion, or produce an unusual odor. Swelling can make the battery difficult to remove from the UPS enclosure.

• A distorted or swollen battery case
• Corrosion around the terminals
• Unusual heat during charging
• A chemical or sulfur-like odor
• Visible leakage or residue

A UPS showing any of these conditions should be disconnected and handled carefully rather than left operating near computers or other equipment.

A Battery That Will Not Hold a Charge Needs Attention

If the UPS reports a full charge but shuts down almost immediately when utility power is removed, the battery may have lost most of its usable capacity. A loose battery connection or internal UPS fault can create similar symptoms.

The battery connection, replacement age, electrical load, and UPS condition should all be checked before the cause is confirmed.

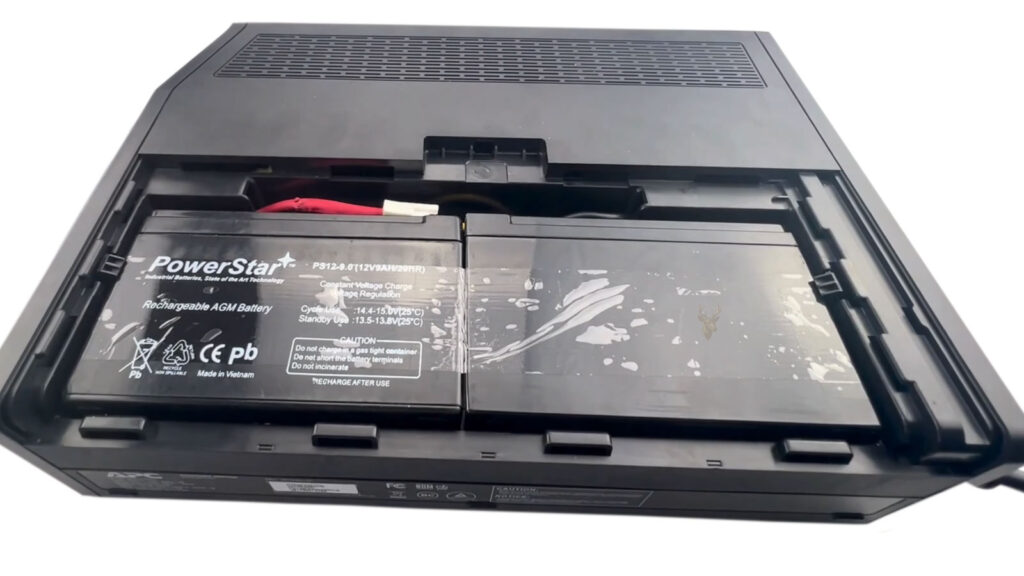

Replacement Batteries Must Match the UPS

A replacement battery should match the voltage, physical dimensions, terminal type, and capacity supported by the UPS. A battery that fits inside the enclosure is not automatically suitable for the unit.

Using an incorrect battery can cause charging problems, poor runtime, overheating, or damage to the UPS electronics.

Battery Capacity Should Remain Within Supported Limits

Replacement batteries are commonly rated in ampere-hours. A higher-capacity battery may appear desirable, but the UPS charging circuit and enclosure were designed for a particular battery range.

The replacement should follow the specifications provided by the UPS manufacturer or a dependable battery supplier familiar with the exact model.

Some UPS Units Contain More Than One Battery

Larger UPS systems may use two or more batteries connected together. When one battery becomes weak, the performance of the entire battery pack can be affected.

Replacing only one battery in an aged set can create an imbalance between the old and new batteries. In many cases, all batteries in the pack should be replaced together.

Battery Orientation and Wiring Must Be Recorded

Before removing a battery, the position of each wire and terminal should be documented. Reversing the positive and negative connections can damage the UPS and create an electrical hazard.

Photographs taken before disassembly can provide a useful reference during installation.

The UPS Should Be Disconnected Before Service

Battery replacement should be performed with the connected equipment shut down and the UPS disconnected from wall power. Even after the unit is unplugged, the battery can still supply electrical current.

Metal tools, jewelry, and loose conductive objects should be kept away from exposed battery terminals to reduce the risk of a short circuit.

Battery Terminals Must Fit Securely

Loose push-on terminals can create resistance, heat, and intermittent battery operation. Each connector should fit firmly without excessive force or visible movement.

Corroded, discolored, or heat-damaged terminals should be corrected before the UPS is returned to service.

A New Battery May Require Calibration

Some UPS systems estimate runtime using information learned from previous discharge cycles. After battery replacement, the displayed runtime may remain inaccurate until the unit completes a supported calibration or self-test process.

Calibration instructions vary by manufacturer and should not be replaced with repeated full discharges unless the procedure specifically requires them.

Frequent Deep Discharges Should Be Avoided

Allowing the UPS battery to become completely depleted can increase wear. The computer should be shut down before the remaining capacity reaches a critically low level.

Automatic shutdown settings can help preserve the battery while also protecting open files and the operating system.

Storage Conditions Affect Spare Batteries

A replacement battery begins aging before it is installed. Batteries stored for long periods can lose charge and may suffer permanent capacity loss if they remain discharged.

• Store batteries in a cool, dry location.
• Avoid direct sunlight and excessive heat.
• Follow the supplier’s recommended recharge interval.
• Check manufacturing or date codes before installation.
• Do not purchase batteries that have remained in storage for an unknown period.

Old UPS Batteries Require Proper Disposal

Sealed lead-acid batteries should not be placed in ordinary household trash. They contain materials that should be recovered through an approved battery recycling program.

Many battery suppliers, electronics recyclers, and municipal collection programs accept used UPS batteries for proper handling.

Replacing the Battery Does Not Repair Every UPS Fault

A new battery will not correct failed charging circuits, damaged relays, faulty displays, worn cooling fans, or internal electrical damage. If the UPS continues to report errors after a correct replacement, the unit itself may require service or replacement.

An older UPS should also be inspected for heat damage, unusual noise, damaged outlets, and unreliable switching before additional money is invested in batteries.

Very Old UPS Units May No Longer Be Practical to Maintain

Battery replacement can extend the life of a dependable UPS, but there is a point where replacing the complete unit becomes more reasonable. Older models may lack current communication features, replacement parts, sufficient capacity, or compatibility with modern power supplies.

The age of the electronics, replacement battery cost, connected equipment value, and required runtime should all be considered.

Runtime Should Be Verified Under a Controlled Load

After the battery is fully charged, the UPS can be tested with the normal equipment load under controlled conditions. Important work should be saved before testing, and the system should be observed closely.

The purpose is not to drain the battery completely but to confirm that the UPS transfers to battery power and provides enough time for a safe shutdown.

Maintenance Records Help Prevent Unexpected Failure

Recording the battery installation date, test results, connected load, and replacement history makes future maintenance easier. A label placed on the UPS can provide a simple reminder of when the battery was installed.

Small offices with several UPS units may benefit from maintaining a shared replacement schedule rather than waiting for individual batteries to fail during outages.

Frequently Asked Questions About UPS Batteries

How often should a UPS battery be replaced?

There is no single replacement interval for every UPS. Battery age, temperature, discharge history, test results, and available runtime should all be considered.

Can a UPS battery appear charged but still be bad?

Yes. The battery may reach its normal charging voltage while having very little usable capacity remaining under load.

Should a new UPS battery be charged before testing?

Yes. It should be allowed to charge for the period recommended by the manufacturer before its runtime is evaluated.

Can a larger replacement battery provide more runtime?

Possibly, but only when the UPS is designed to support that battery. Physical fit alone does not confirm electrical compatibility.

Why does a UPS shut down immediately during an outage?

The battery may be weak, disconnected, insufficiently charged, or unable to support the connected load. An overload or internal UPS failure can cause the same behavior.

Can the old battery be placed in household trash?

No. UPS batteries should be taken to an approved battery recycling or hazardous waste collection location.

Reliable Backup Power Depends on Battery Condition

A UPS can protect a computer only when its battery has enough capacity to support the connected load. Heat, age, frequent outages, heavy equipment demands, and incomplete charging can all reduce available runtime.

Regular testing, accurate maintenance records, correct replacement batteries, and realistic runtime expectations help prevent unexpected shutdowns. When battery condition and equipment load are reviewed together, a UPS can continue providing dependable protection throughout electrical interruptions.
