How Electrical Grounding Supports Computer Safety and Stability
Computers depend on more than a steady supply of electricity. They also rely on a properly grounded electrical system to help manage fault current, reduce electrical interference, and provide a safer path when something inside the equipment fails.
Grounding is often overlooked because it usually performs its role without any visible activity. A computer may appear to work normally even when connected to an improperly grounded outlet, but the missing protection can become important during an electrical fault, equipment failure, or unexpected voltage condition.
What Electrical Grounding Means
Electrical grounding creates a conductive path between equipment and the grounding system of a building. In a typical three-prong power connection, the third prong is the equipment grounding connection.
Under normal operating conditions, current flows through the intended power conductors rather than through the ground. The grounding path is present primarily for protection if an energized conductor contacts a metal enclosure or another conductive part that should not carry voltage.
Grounding is a protective path designed to carry fault current away from exposed equipment surfaces.
The Ground Connection Is Not the Same as the Neutral Connection
Neutral and ground are related within an electrical system, but they do not serve the same purpose at the equipment outlet. Neutral normally carries current back through the circuit during operation. The equipment grounding conductor is intended to remain inactive unless a fault occurs.
Treating neutral and ground as interchangeable can create unsafe conditions. Their connection points and functions are determined by the design of the building’s electrical distribution system.
| Connection | Primary Purpose |
|---|---|
| Hot conductor | Delivers electrical power to the equipment |
| Neutral conductor | Provides the normal return path for current |
| Equipment ground | Provides a protective path during an electrical fault |

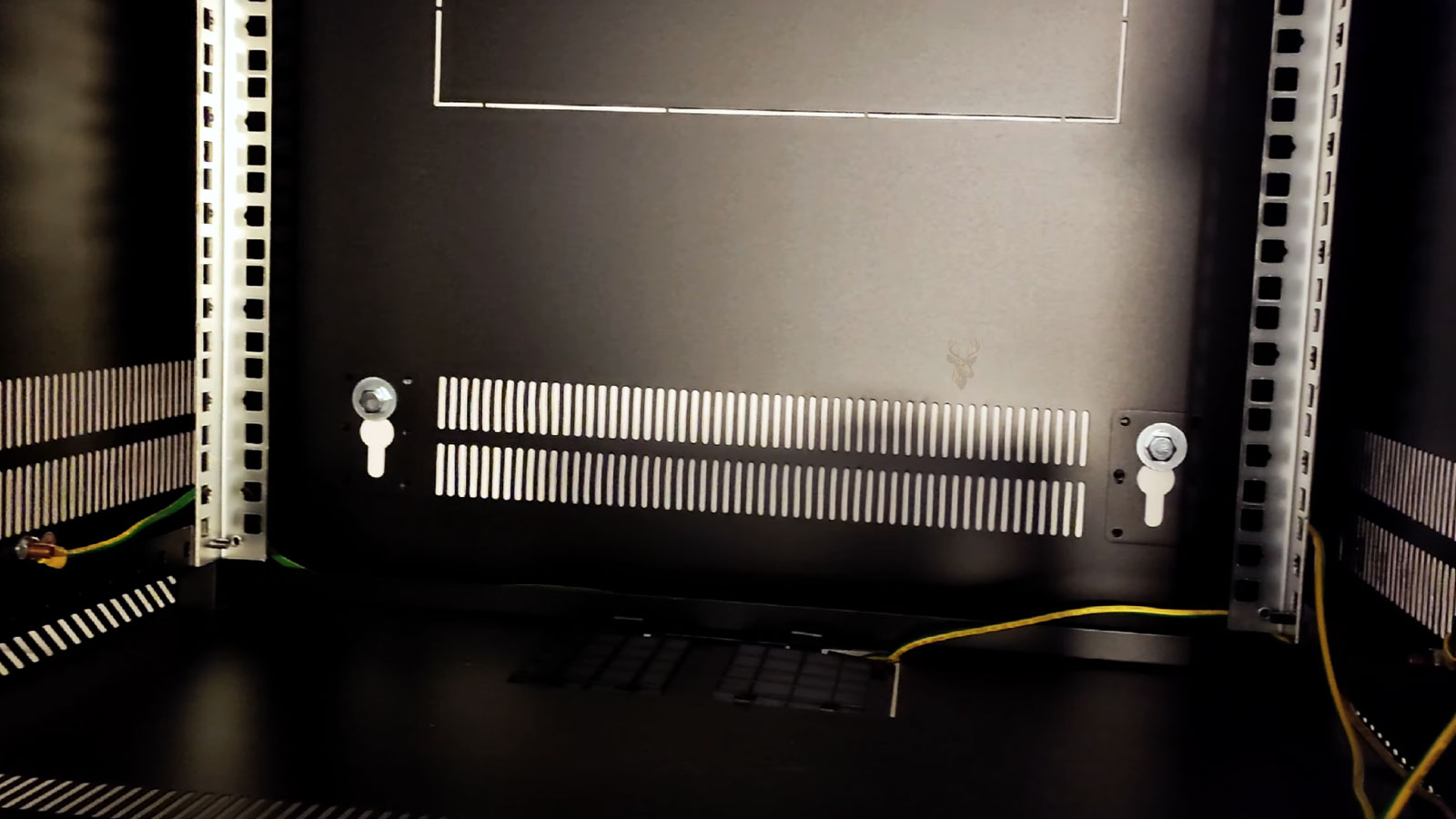

Why Computer Cases Are Connected to Ground
Desktop computer power supplies are usually mounted directly to a metal chassis. Through this connection, the power supply enclosure and computer case become part of the equipment grounding path.
If an internal power wire were to contact the metal chassis, the grounding path would help carry fault current back through the electrical system. This can allow a circuit breaker or other protective device to respond instead of leaving the computer case energized.
Grounding Helps Protective Devices Respond to Faults
Circuit breakers and fuses respond when current rises beyond safe limits. A low-resistance grounding path can allow enough fault current to flow for the protective device to disconnect the circuit quickly.
Without an effective grounding path, a fault may not produce the same immediate response. Conductive parts of the computer or connected equipment could remain energized until another path is created.
- Grounding provides a planned route for fault current.
- It helps reduce voltage on exposed metal surfaces.
- It supports the operation of circuit breakers and other protective devices.
- It helps keep connected equipment at a common electrical reference.
Two-Prong Adapters Remove an Important Safety Connection
Adapters that allow a three-prong computer plug to fit into a two-prong outlet may permit the computer to turn on, but they can eliminate the equipment grounding connection when no separate grounding method is present.
The computer may appear to operate normally because the ground conductor is not required for ordinary power delivery. However, the protective path may be missing when an internal fault occurs.
Removing the Ground Prong Does Not Correct an Outlet Problem
Cutting or breaking off the grounding prong from a computer power cable defeats a built-in safety feature. It does not repair an improperly wired outlet, and it can expose the user and equipment to unnecessary risk.
If a grounded plug does not fit an available receptacle, the appropriate solution is to have the electrical system evaluated rather than modifying the computer’s power cord.
Grounding and Surge Protectors Work Together
Many surge protectors rely on the building’s grounding system as part of their protective design. If the wall outlet is not properly grounded, some surge protection functions may be reduced or unavailable.
A power strip labeled as a surge protector does not create a ground connection on its own. It can only use the wiring and grounding provided by the outlet.
A grounded surge protector cannot compensate for a missing or defective building ground.
Outlet Test Lights Provide Only Basic Information
Some surge protectors, battery backups, and outlet testers include indicator lights intended to show whether a ground connection appears to be present. These indicators can reveal certain common wiring conditions, but they do not provide a complete electrical inspection.
An outlet may pass a simple indicator test while still having loose wiring, excessive resistance, improper bonding, or another condition requiring professional evaluation.
Grounding Can Influence Electrical Noise
Computer systems contain high-frequency switching circuits, power converters, display connections, network interfaces, and many other sources of electrical activity. Proper grounding helps establish a common electrical reference and can assist with controlling unwanted interference.
Grounding does not eliminate every form of electrical noise, but poor grounding can contribute to unstable signals, audible hum, display interference, communication problems, or unusual behavior between connected devices.
Connected Devices May Create Multiple Ground Paths
A computer is often connected to monitors, printers, powered speakers, external drives, network equipment, docking stations, and other devices. Each powered device may have its own connection to the building’s electrical system.
When equipment is connected across outlets with different electrical characteristics, small voltage differences can exist between grounding points. This can create unwanted current through audio cables, video cables, shielding, or communication connections.
Ground Loops Can Cause Hum and Interference
A ground loop develops when equipment has more than one grounding path and a voltage difference causes current to flow between those paths. In computer environments, this may be noticed as humming from speakers, interference in audio equipment, flickering in certain displays, or communication instability.
Ground loops are not corrected by removing protective grounding connections. Diagnosis requires identifying how the equipment is powered and connected while preserving electrical safety.
Laptop Power Adapters May Use Grounded or Ungrounded Plugs
Some laptop power adapters use a three-prong grounded input cable, while others use a two-prong design. The construction depends on the adapter’s electrical design, insulation method, leakage-current requirements, and manufacturer specifications.
A two-prong laptop adapter is not automatically unsafe. It may be designed with reinforced or double insulation so that a protective ground connection is not required. A grounded adapter, however, should be used with its intended grounding connection intact.
| Power Connection | General Design |
|---|---|
| Three-prong desktop power cord | Uses an equipment grounding conductor connected to the chassis |
| Three-prong laptop adapter | Uses a protective ground connection through the AC input cable |
| Two-prong laptop adapter | May use double-insulated construction without an equipment ground |
| Modified or damaged power cord | May no longer provide the protection intended by the manufacturer |
A Tingling Sensation Can Indicate Leakage Current
Some users notice a faint tingling or vibration when touching the metal surface of a laptop, monitor, or computer case. This sensation can be related to small leakage currents produced by power-supply filtering circuits, especially when equipment is connected through an ungrounded adapter or outlet.
A mild sensation does not identify the exact cause, and stronger shocks should never be considered normal. The power adapter, outlet, grounding connection, and connected equipment may need to be evaluated.
Improper Grounding Can Be Difficult to Recognize
Many grounding problems produce no immediate computer symptoms. The system may start, run applications, connect to the internet, and appear completely normal.
The weakness becomes important when a fault, surge, damaged cable, failing power supply, or connection between multiple devices creates a condition that depends on the grounding system for protection.
Grounding Problems Should Be Evaluated at the Electrical Source
Replacing a computer power supply, surge protector, or power cable does not correct defective building wiring. When grounding concerns point to the outlet or electrical system, the source should be inspected by a qualified electrical professional.
In Part 2, we will examine common signs of grounding trouble, how grounding problems can affect connected computer equipment, and why outlet wiring should be checked before replacing otherwise functional hardware.
Common Signs of Grounding Problems
Grounding issues do not always prevent a computer from operating. In many cases, the system starts normally, applications run without difficulty, and internet connectivity appears unaffected. The absence of obvious failures can make grounding problems difficult to recognize until unusual electrical behavior develops.
When grounding is compromised, the symptoms may involve more than one device connected to the computer. Audio equipment, external displays, printers, networking hardware, or USB peripherals may all be affected depending on how the equipment is interconnected.
- Intermittent electrical noise through speakers.
- Unexpected tingling when touching exposed metal surfaces.
- Frequent interference affecting connected audio equipment.
- Equipment behaving differently when moved to another outlet.
- Unusual electrical behavior involving multiple connected devices.
Grounding problems often become noticeable only after several interconnected devices begin sharing power and signal connections.
Desktop Computers Depend on Chassis Grounding
Most desktop computer power supplies bond the metal chassis to the equipment grounding conductor. This allows the entire case to remain at the same electrical reference as the building’s grounding system under normal operating conditions.
If an internal electrical fault causes a live conductor to contact the chassis, the grounding connection helps direct fault current through the intended protective path instead of allowing the enclosure to remain energized.
Peripheral Devices Share the Same Electrical Environment
A typical workstation rarely consists of only one computer. Monitors, docking stations, external drives, scanners, printers, speakers, networking equipment, webcams, and USB hubs all become part of the same electrical environment once connected.
Proper grounding helps these devices operate with a common electrical reference, reducing the possibility of unwanted current flowing through signal cables instead of intended grounding paths.
Audio Equipment Is Often Sensitive to Ground Differences
Computer speakers, recording equipment, mixers, microphones, and amplifiers may reveal grounding problems more quickly than other devices. Small voltage differences between interconnected equipment can introduce audible hum, buzzing, or background noise.
Although grounding is not the only possible cause of audio interference, it is frequently evaluated when multiple powered devices share audio connections.
| Connected Equipment | Possible Effect of Grounding Problems |
|---|---|
| Desktop computer | Unsafe chassis conditions during electrical faults |
| Powered speakers | Hum or electrical interference |
| External monitor | Occasional signal interference or abnormal behavior |
| Docking station | Electrical reference differences between connected devices |
| Networking equipment | Potential electrical interference under certain conditions |
Improper Grounding Does Not Usually Damage Components Immediately
Many improperly grounded systems continue operating for long periods without visible damage. The grounding system primarily exists as a protective measure that becomes important when abnormal electrical conditions develop.
This explains why some users remain unaware of grounding deficiencies until equipment is replaced, relocated, or connected to additional devices.
Building Wiring Plays an Important Role
The quality of a computer’s grounding depends largely on the electrical installation serving the outlet. Loose grounding conductors, damaged receptacles, improper wiring, or modifications made over many years can affect how the grounding system performs.
Because these conditions exist outside the computer itself, replacing internal hardware will not correct problems originating within the building’s electrical system.
Extension Cords and Power Strips Do Not Repair Grounding Problems
A properly manufactured extension cord or power strip passes the grounding connection provided by the wall outlet. If the outlet itself lacks a functional equipment ground, the extension cord cannot create one.
Similarly, replacing one power strip with another does not resolve a grounding problem that originates at the electrical source.
The quality of the grounding connection is determined by the electrical installation, not by the length of the extension cord or the number of connected outlets.
UPS Systems Still Require Proper Grounding
Many uninterruptible power supplies include surge protection, battery backup, filtering, and voltage regulation features. Even so, they are designed to operate with a properly grounded electrical source.
A UPS improves power continuity during outages, but it is not intended to replace the protective grounding system built into the electrical installation.
Grounding Helps Reduce Electromagnetic Interference
Modern computers generate high-frequency electrical activity as processors, graphics hardware, memory, storage devices, and switching power supplies operate. Proper grounding assists with controlling unwanted electromagnetic emissions while helping sensitive electronic circuits function within their intended electrical environment.
This is one reason metal computer cases, shielding, and grounding work together as part of overall system design.
Laptop Users May Notice Differences Between Locations
A laptop operating on battery power is electrically isolated from the building’s power system. Once the power adapter is connected, however, the electrical characteristics depend on both the adapter design and the outlet supplying power.
Users sometimes observe different electrical behavior when using the same laptop at home, in an office, or while traveling because each location has its own electrical installation.
Electrical Safety Should Never Be Bypassed
Attempting to eliminate electrical noise or equipment interference by removing protective grounding connections can create unsafe operating conditions. Solutions that interrupt the equipment grounding conductor may reduce one symptom while eliminating an important layer of protection.
Safe troubleshooting focuses on identifying the actual electrical condition rather than defeating the protective systems built into the equipment.
Testing Should Begin With the Power Source
When grounding problems are suspected, technicians often begin by evaluating the outlet supplying power before replacing otherwise functional computer hardware. Verifying outlet wiring, grounding continuity, and proper electrical installation helps determine whether the source of the problem lies inside the computer or within the building’s electrical system.
In Part 3, we’ll explore best practices for maintaining proper grounding, common misconceptions about electrical safety, and why grounding continues to play an essential role in protecting modern computer systems.
Proper Grounding Is Part of Overall Computer Protection
Electrical grounding is only one part of a complete protection strategy, but it supports many other safety features built into modern computer systems. Surge protectors, uninterruptible power supplies, power supplies, and circuit breakers all assume that a properly functioning grounding system is available when needed.
When every part of the electrical system works together as intended, computer equipment has a greater level of protection against electrical faults while maintaining a stable operating environment.
Grounding is not designed to improve computer performance—it is designed to improve electrical safety and help protective systems operate correctly.
Routine Inspection Helps Identify Potential Problems
Most grounding problems develop outside the computer itself. Loose receptacles, damaged power cords, worn extension cables, improperly installed outlets, or deteriorated electrical components can all affect the integrity of the grounding path.
Occasional inspection of power cords, plugs, surge protectors, and wall outlets can help identify visible damage before it creates a larger electrical concern.
- Inspect power cords for cuts, crushed insulation, or exposed conductors.
- Replace damaged plugs rather than attempting temporary repairs.
- Avoid loose wall outlets that no longer securely hold the plug.
- Replace surge protectors that show signs of physical damage or overheating.
- Keep electrical connections dry and free of contamination.
Avoid Overloading Electrical Circuits
Grounding cannot compensate for overloaded electrical circuits. Connecting numerous high-power devices to a single outlet or power strip increases electrical demand and may exceed the capacity of the circuit or the equipment supplying it.
Computers, monitors, printers, networking equipment, battery backups, and other office electronics should be distributed appropriately across available circuits whenever practical.
Do Not Assume Every Three-Prong Outlet Is Properly Grounded
The presence of a three-prong receptacle does not automatically confirm that the grounding conductor is correctly installed or functioning. Older buildings, improper renovations, damaged wiring, or incorrect outlet replacements can leave a receptacle appearing normal while lacking an effective equipment ground.
This is one reason electrical testing may be appropriate whenever unusual power-related symptoms repeatedly occur.
| Situation | Recommended Action |
|---|---|
| Loose or damaged outlet | Have the outlet repaired or replaced appropriately. |
| Broken grounding pin on a power cord | Replace the damaged power cord. |
| Repeated electrical tingling from equipment | Inspect the power adapter, outlet, and grounding system. |
| Persistent electrical interference | Evaluate the connected equipment and electrical installation. |
| Visible damage to surge protectors | Replace the surge protector rather than continuing to use it. |
Modern Power Supplies Include Multiple Protective Features
Computer power supplies contain numerous protective circuits designed to respond to abnormal operating conditions. These protections may include safeguards against excessive current, excessive voltage, overheating, and short circuits.
Although these internal protections improve reliability, they are designed to operate alongside—not instead of—a properly grounded electrical system.
Grounding Is Important in Home and Business Environments
Whether a computer is installed in a home office, classroom, repair facility, or business network, proper grounding remains equally important. Desktop workstations, servers, network switches, storage devices, and professional workstations all depend on safe electrical installation practices.
As more devices become interconnected through local networks, docking stations, shared displays, and external storage, maintaining a reliable electrical foundation becomes increasingly valuable.
Electrical Safety Is Different From Electrical Troubleshooting
Computer troubleshooting often focuses on identifying hardware failures, software errors, or operating system problems. Electrical safety, however, extends beyond the computer and includes the building wiring, outlet condition, grounding system, and protective devices supplying power.
Recognizing this distinction helps prevent unnecessary replacement of functioning computer components when the actual concern originates elsewhere.
Grounding Problems Should Not Be Ignored
Repeated electrical sensations, damaged power cords, overheated plugs, unusual outlet behavior, or recurring power-related concerns deserve attention rather than temporary workarounds. Addressing the underlying electrical condition helps protect both users and equipment.
Attempting to bypass protective features may hide a symptom without correcting the actual cause.
Computer Grounding Continues to Support Reliable Operation
Although grounding normally remains invisible during everyday computer use, it plays a continuous role in supporting electrical safety, reducing the effects of fault conditions, and helping protective equipment perform as intended. Its importance becomes most apparent when abnormal electrical events occur.
Understanding how grounding functions provides a better appreciation of the electrical systems supporting modern computers and reinforces why proper installation practices remain an essential part of dependable computing.
A Strong Electrical Foundation Protects More Than the Computer
Every computer ultimately depends on the quality of the electrical system supplying it. While processors, memory, storage devices, and software receive most of the attention, proper grounding quietly helps create a safer operating environment by supporting fault protection and stable electrical operation.
By understanding the purpose of electrical grounding and recognizing its role within the broader electrical system, computer users can better appreciate why proper wiring, quality power equipment, and safe installation practices remain essential for protecting both technology and the people who use it every day.
