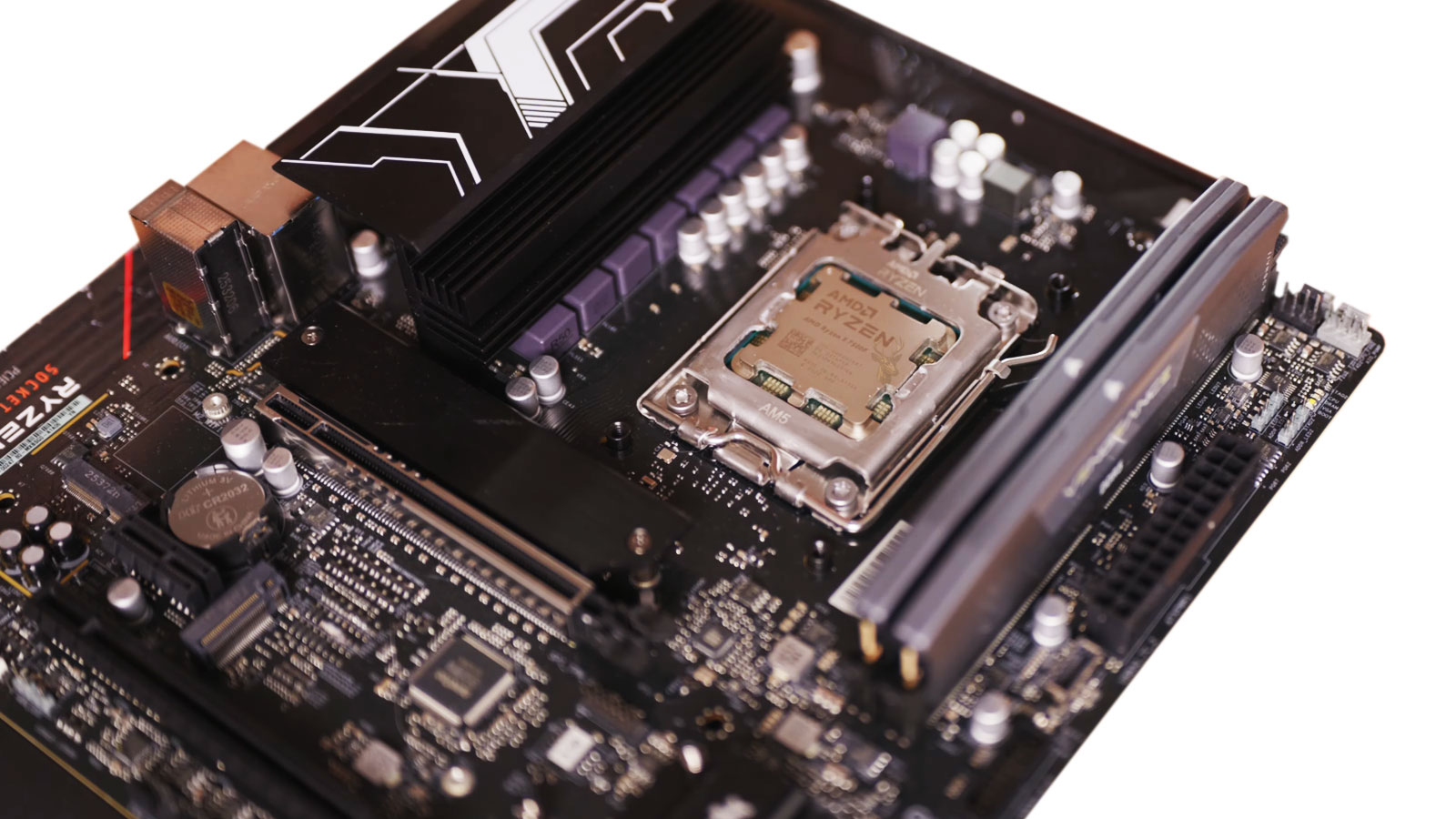

Installed Memory and Detected Memory Are Not Always the Same

A desktop computer may contain several memory modules while Windows or the BIOS reports a smaller total than expected. A system built with 16 GB may display only 8 GB, or a computer with 32 GB may recognize 24 GB after an upgrade or repair.

The missing capacity does not always mean that every unreported module has failed. Memory detection depends on the modules, motherboard slots, processor memory controller, firmware settings, physical installation, and the operating system.

The first diagnostic step is to determine where the reduced amount appears. Memory missing from the BIOS points toward a different group of causes than memory detected by the firmware but unavailable inside Windows.

The Expected Capacity Should Be Confirmed Before Troubleshooting

Memory modules may be covered by heat spreaders, partially hidden by a processor cooler, or installed in several matching-looking slots. The amount assumed to be present should be verified from the labels on the modules, the purchase records, or a previous hardware inventory.

Two modules with the same appearance may have different capacities. A system believed to contain four 8 GB modules could actually contain a mixture of 4 GB and 8 GB parts.

Installed Module Combination	Expected Total
Two 4 GB modules	8 GB
Two 8 GB modules	16 GB
Four 8 GB modules	32 GB
Two 16 GB modules	32 GB
Two 8 GB and two 4 GB modules	24 GB

BIOS Memory Detection Provides an Important Starting Point

The BIOS or UEFI firmware performs the initial memory detection before Windows starts. If the firmware reports less RAM than is physically installed, the operating system normally cannot recover the missing capacity.

A reduced total inside the BIOS directs attention toward memory seating, module compatibility, motherboard slots, processor contact, firmware configuration, or hardware failure.

When the BIOS does not detect the full amount of RAM, reinstalling Windows is unlikely to correct the underlying problem.

Windows May Distinguish Installed Memory From Usable Memory

Windows can report the full physical amount while showing a smaller amount as usable. This means the firmware recognized the memory, but part of it has been reserved or made unavailable to the operating system.

The reserved portion may be used by integrated graphics, firmware, hardware devices, memory mapping, or a configuration limit. A small reserved amount can be normal, while several missing gigabytes may require investigation.

Displayed Result	Likely Diagnostic Direction
BIOS and Windows both show less RAM	Installation, module, slot, processor, compatibility, or motherboard issue.
BIOS shows full RAM but Windows shows less installed	Operating-system architecture, startup setting, or Windows configuration.
Windows shows full installed RAM but less usable	Hardware reservation, graphics allocation, firmware, or memory mapping.
Memory amount changes between restarts	Intermittent contact, unstable module, slot, processor socket, or firmware training.
Full amount appears after modules are reseated	Module or slot contact was likely involved.

A Memory Module Must Be Fully Seated at Both Ends

Desktop memory modules require firm and even insertion into the slot. A module can appear installed while one side remains slightly raised. The retaining clip may close on one end even though the electrical contacts are not fully engaged.

This is common after a memory upgrade, internal cleaning, processor cooler replacement, or moving a computer. Large coolers and tight cases can make it difficult to press directly on both ends of the module.

1. Shut down the computer and disconnect external power.
2. Allow standby power to discharge before touching internal components.
3. Open the retaining clips for the selected memory slot.
4. Align the module notch with the key inside the slot.
5. Press evenly until the module is fully inserted.
6. Confirm that the retaining clips are secured correctly.
7. Start the computer and check the detected capacity again.

The Module Notch Prevents Incorrect Orientation

Desktop memory has an offset notch that matches a raised key inside the slot. The module should never be forced when the notch does not align.

Different generations of memory may have similar dimensions but use different notch positions and electrical requirements. DDR3, DDR4, and DDR5 modules are not interchangeable merely because they are all desktop memory.

One-Sided Retaining Clips Can Make Seating Difficult to Judge

Some motherboards use a movable clip on only one end of each memory slot. The fixed end must still receive the module completely even though no clip moves there.

A module installed at a slight angle may lock at the movable end while remaining partially outside the contacts at the fixed end. Visual inspection from both ends can reveal the difference.

Dust and Debris Can Interfere With Slot Contact

Dust, fibers, or residue inside a memory slot can prevent reliable electrical contact. The problem may begin after a module is removed and reinstalled because debris shifts into the contact area.

Cleaning must be performed carefully. Liquids, brushes that create static electricity, and high-pressure compressed air can damage the slot or move contamination deeper into the computer.

• Inspect the slot under adequate lighting.
• Check the module contacts for residue or physical damage.
• Keep the computer disconnected from power during inspection.
• Avoid scraping the contacts with metal tools.
• Do not insert a module while debris remains inside the slot.

Oxidized Contacts Can Produce Intermittent Detection

Memory module contacts can develop contamination or oxidation after long storage, humidity exposure, liquid damage, or use in a dusty environment. The module may work in one slot and disappear after the computer is moved.

Repeatedly removing and inserting the module may temporarily change the symptom without resolving the underlying condition. The contacts and slot should be inspected rather than assuming the temporary return proves the memory is healthy.

A Failed Module Can Remove Its Entire Capacity

When one memory module fails completely, the computer may continue starting with the remaining modules. The only visible symptom may be a lower memory total and reduced performance during demanding work.

Other failed modules can prevent startup, trigger memory warning lights, produce beep codes, or cause repeated restarts during memory training. The behavior depends on the motherboard and the type of failure.

Memory Failure Pattern	Possible Behavior
One module is not detected	The computer starts with reduced capacity.
Module produces data errors	The full capacity may appear, but crashes or corruption can occur.
Module prevents memory training	The system may restart repeatedly or fail before video appears.
Module works only at lower speed	The rated profile may be unstable or incompatible.
Module fails intermittently	The detected total may change between cold starts.

Capacity Detection and Memory Stability Are Separate Questions

A module can be detected at its full capacity and still produce memory errors under load. Detection confirms that the system can identify the module, but it does not prove that every memory cell and signal path works reliably.

Likewise, a module missing from the detected total is not automatically defective. A slot, processor channel, BIOS setting, or compatibility problem can prevent a healthy module from appearing.

Seeing the correct memory total confirms capacity detection, not complete memory reliability.

Testing One Module at a Time Can Isolate the Failure

When several modules are installed, testing them individually can help determine whether one part is not recognized. Each module should be tested in a motherboard slot recommended for single-module operation.

The same module should not be moved randomly among every slot without recording the results. A simple test table can separate a module problem from a slot or memory-channel problem.

Test Result	Possible Interpretation
One module fails in every known-good slot	The module is likely defective or incompatible.
Every module fails in one particular slot	The slot, motherboard trace, processor contact, or channel may be involved.
All modules work alone but not together	Compatibility, speed, voltage, BIOS, or memory-controller load may be involved.
Only one matched pair works	The other pair or the channel used by it requires further testing.
Detection changes after each reassembly	Physical contact or mechanical pressure may be affecting the system.

The Motherboard Manual Identifies the Correct First Slot

Many motherboards recommend a specific slot when only one memory module is installed. This is often the second slot away from the processor, but the correct location depends on the board design.

Testing in an unsuitable slot can produce misleading startup or stability results. The motherboard manual or manufacturer documentation should be consulted instead of relying only on slot color.

Matching Slot Colors Do Not Always Explain the Required Order

Slot colors are often used to indicate memory channels or recommended pairs, but manufacturers do not all use the same pattern. Two slots with matching colors may represent a pair, or the colors may simply separate channel groups.

The printed slot names, such as A1, A2, B1, and B2, provide more reliable information when compared with the motherboard manual.

Memory Channels Depend on Correct Slot Placement

Modern desktop processors commonly use two or more memory channels. Modules placed in the recommended corresponding slots allow the controller to access memory across those channels efficiently.

Incorrect placement normally affects performance more than total capacity, but some boards may train memory differently or refuse certain unsupported arrangements. The expected slot order should be verified before assuming a hardware failure.

• Identify the number of installed memory modules.
• Locate the motherboard’s printed slot labels.
• Review the recommended one-module and two-module positions.
• Install matched pairs in the corresponding channel slots.
• Check the BIOS for total capacity and channel information.

A Failed Memory Channel Can Hide Multiple Modules

If an entire memory channel stops functioning, every module connected to that channel may disappear from the detected total. A four-module computer can suddenly recognize only the two modules belonging to the remaining channel.

The failure may originate in the motherboard slots, traces, processor memory controller, socket contacts, firmware, or excessive cooler pressure. Replacing the missing modules alone may not correct it.

The Processor Contains the Memory Controller in Many Systems

On many modern desktop platforms, the primary memory controller is built into the processor rather than located entirely in the motherboard chipset. Communication between the processor and memory therefore depends on proper processor installation and socket contact.

A computer can start and run while one memory channel remains unavailable. This makes the symptom appear to be a RAM or motherboard slot problem even when processor contact is responsible.

Missing memory can result from the signal path between the processor and the slots, not only from the memory modules themselves.

Bent Processor Socket Pins Can Disable Memory Channels

Desktop processor sockets contain many small contacts responsible for power, data, and memory communication. A bent or contaminated contact can interrupt one group of memory signals while leaving the rest of the computer operational.

The problem often appears after processor replacement, motherboard installation, cooler service, or an unsuccessful repair attempt. Socket inspection requires magnification, strong lighting, and careful handling because additional contacts can be damaged easily.

Event Before Memory Disappeared	Area to Review
Processor was removed and reinstalled	Socket contacts, processor seating, and contamination.
Large cooler was installed	Mounting pressure, board flex, and processor contact.
Motherboard was transferred to another case	Board damage, standoffs, flex, and slot contact.
Memory was upgraded	Module seating, slot order, compatibility, and BIOS training.
Computer was shipped or dropped	Module movement, cooler pressure, board flex, or cracked connections.

Excessive Cooler Pressure Can Affect Memory Detection

A processor cooler must maintain firm contact with the processor, but uneven or excessive mounting pressure can flex the motherboard or alter processor-to-socket contact. One memory channel may disappear even though processor temperatures remain normal.

This is more likely with large tower coolers, unevenly tightened mounting hardware, incorrect brackets, or missing spacers. Cooler adjustment should follow the manufacturer’s installation sequence rather than being loosened randomly while the computer is powered.

Motherboard Flex Can Change an Intermittent Memory Problem

The motherboard can flex during cooler installation, memory insertion, case movement, or improper mounting. A marginal socket contact or cracked connection may temporarily return when pressure changes.

A memory total that changes when the case is moved or the cooler is adjusted should be treated as a physical hardware problem. Continued flexing can worsen board damage.

Incorrect Case Standoffs Can Stress the Motherboard

Motherboards are supported by metal standoffs placed at designated mounting holes. An extra standoff under an unsupported area can press against the board, create a short circuit, or apply mechanical stress.

A missing standoff can also allow excessive flex when memory modules or cables are installed. The case mounting pattern should be reviewed when memory problems begin after a motherboard transfer.

• Confirm that every standoff aligns with a motherboard mounting hole.
• Remove any standoff located beneath an unsupported board area.
• Check that mounting screws are secure but not excessively tightened.
• Inspect the board for bending near the processor and memory slots.
• Verify memory detection after the mounting issue is corrected.

A Damaged Memory Slot Can Prevent Module Detection

A slot may contain bent contacts, cracked plastic, broken retaining clips, contamination, or damaged solder joints. A known-good module may fail only when installed in that location.

The absence of visible damage does not prove that the slot is electrically healthy. Signal traces and solder connections beneath the slot can fail without an obvious surface defect.

Repeated Module Removal Can Wear or Damage a Slot

Memory slots are designed for service, but repeated insertion at an angle or forcing incompatible modules can damage internal contacts. A retaining clip can also break and leave the module inadequately secured.

When testing several modules, each insertion should be performed carefully and recorded. Rapidly moving parts among slots increases the chance of creating a new problem during diagnosis.

Mixed Memory Kits May Not Operate as One Matched Set

Two memory kits can share the same brand, product name, capacity, and advertised speed while using different internal chips or revisions. Each kit may work correctly by itself but fail when all modules are installed together.

Memory sold as one matched kit has been selected for operation as that complete group. Combining separate kits increases the variables handled by the processor memory controller and motherboard firmware.

Memory Combination	Compatibility Consideration
One factory-matched kit	Designed and rated to operate as the listed module set.
Two separate kits with the same model number	Internal revisions may still differ.
Different capacities	The board may support the mixture, but channel layout should be reviewed.
Different rated speeds	The system usually attempts settings supported by all modules.
Different voltage requirements	One common stable configuration may not be available.

Different Memory Speeds Usually Run at a Common Setting

When modules with different speed ratings are installed, the system normally selects a speed and timing combination that all installed parts can support. The faster module does not force the slower module to operate beyond its rating automatically.

However, automatic training may fail when the modules use significantly different characteristics. Reducing the memory speed or restoring default settings can help determine whether the missing capacity is connected to an unstable profile.

Memory Voltage Must Be Suitable for Every Installed Module

Performance memory kits may require a higher configured voltage than standard default memory settings. Mixing modules with different requirements can result in unstable training or incomplete detection.

Voltage should not be increased without confirming the module specifications, processor limits, and motherboard support. Excessive voltage can damage the memory controller or modules.

XMP and Similar Profiles Can Affect Capacity Detection

Memory performance profiles configure speed, timings, and voltage beyond basic default values. A profile that works with two modules may become unstable after two more modules are installed.

Restoring standard memory settings can provide a useful comparison. If the full capacity appears only at default speed, the hardware may be present but unable to train reliably at the selected performance profile.

1. Record the current memory speed, timings, voltage, and profile setting.
2. Restore supported default memory settings.
3. Restart the computer completely.
4. Check the detected capacity in the BIOS.
5. Test stability with the full module set.
6. Reapply performance settings only after compatibility is confirmed.

Four Modules Place More Load on the Memory Controller

A system stable with two modules may require lower speed or adjusted settings when all four slots are filled. The additional electrical load makes signal timing more demanding.

This does not mean that four-module configurations are inherently defective. It means that the advertised maximum speed of one memory kit may not be achievable with every processor, motherboard, and fully populated slot arrangement.

A memory speed that works with two modules is not guaranteed to remain stable when every motherboard slot is populated.

Motherboard Memory Support Lists Provide Useful Guidance

Motherboard manufacturers often publish tested memory lists showing module models, capacities, speeds, and configurations validated with the board. A module absent from the list is not automatically incompatible, but it may not have been tested in that specific arrangement.

The list should be checked for the number of modules tested, not only the part number. A memory kit validated with two modules may not be validated when four separate modules are installed.

Processor Specifications Can Limit Maximum Memory Capacity

The processor memory controller has limits for supported memory type, total capacity, number of channels, and sometimes official speed. A motherboard may contain enough slots for more memory than a particular processor can address in the selected configuration.

The processor and motherboard limits should both be reviewed. The lower supported limit determines the practical maximum for the complete system.

Compatibility Limit	What Should Be Confirmed
Motherboard maximum capacity	The total RAM supported by the board and firmware.
Maximum capacity per slot	Whether each slot supports the installed module density.
Processor memory limit	The total capacity and memory generation supported by the CPU.
Module organization	Whether the board supports the module rank and chip density.
Firmware version	Whether later BIOS releases added support for newer memory.

High-Capacity Modules May Require Newer Firmware

A motherboard released before certain high-density memory modules became common may require a BIOS update to identify them correctly. The module can fit the slot while only part of its capacity is recognized or the computer fails to start.

Firmware release notes and memory-support documentation should be reviewed before updating. A BIOS update carries risk and should not be performed on an unstable system without reliable power and a recovery plan.

Single-Rank and Dual-Rank Modules Can Behave Differently

Memory rank describes how groups of chips are organized and accessed on a module. Two modules with the same capacity may use different rank arrangements depending on their design and revision.

The motherboard and processor may support both types but require different training behavior when several ranks are installed. Rank differences can therefore affect achievable speed and stability even when the total capacity is supported.

Registered and Unbuffered Memory Are Not Interchangeable

Many standard desktop motherboards require unbuffered memory, while some workstations and servers use registered or load-reduced modules. These memory types may share a generation and physical size but are electrically different.

ECC support also depends on the processor, chipset, motherboard, and firmware. A module should not be selected based only on capacity and notch position.

• Confirm the required memory generation.
• Check whether the system requires unbuffered or registered modules.
• Verify ECC or non-ECC support.
• Review the supported module capacity and organization.
• Do not mix memory types unless the platform explicitly supports it.

A Module Can Fit Physically and Still Be Unsupported

Physical installation confirms only that the module uses a compatible mechanical form. It does not confirm support for the module’s electrical type, capacity, chip density, rank arrangement, or required firmware.

Unsupported memory may appear at reduced capacity, prevent startup, operate only at default speed, or create errors under load.

BIOS Memory Training Occurs During Startup

During startup, the firmware tests communication with the installed memory and selects operating parameters. This process is often called memory training.

After modules or settings are changed, the first startup may take longer, restart several times, or display diagnostic lights while the board searches for a workable configuration. Interrupting this process too quickly can prevent successful detection.

Startup Behavior	Possible Meaning
Long first startup after RAM installation	The motherboard may be training the new configuration.
Several automatic restarts	The firmware may be retrying different memory parameters.
Memory warning light remains on	Training may have failed or a module is not recognized.
System starts with lower speed	The firmware selected a safer fallback setting.
Only part of the memory appears	A module, channel, compatibility, or training issue remains.

Clearing CMOS Can Remove an Unstable Memory Configuration

Firmware can retain memory speed, voltage, timing, and training information from a previous configuration. After modules are changed, those settings may no longer be suitable.

Clearing CMOS or loading firmware defaults can remove the old configuration and allow the motherboard to train the current modules again. Existing boot, storage, security, fan, and virtualization settings should be documented first.

Resetting firmware may restore memory detection, but it can also change unrelated startup and storage settings that the computer depends on.

Firmware Defaults Can Change Storage and Boot Behavior

A complete firmware reset may alter boot order, storage controller mode, secure boot, fan settings, integrated graphics allocation, and other options. Windows may fail to start even though the memory problem improves.

Before clearing settings, photographs or written records should be made of important configuration pages. Changes should be restored carefully after memory detection is tested.

A BIOS Update May Improve Memory Compatibility

Firmware updates can include revised memory training, processor support, module compatibility, and stability corrections. An older board may recognize a memory kit more reliably after an appropriate update.

The update should match the exact motherboard model and revision. Power loss, an incorrect firmware file, or interruption during programming can leave the computer unable to start.

1. Identify the exact motherboard model and hardware revision.
2. Record the currently installed firmware version.
3. Review the manufacturer’s release notes.
4. Confirm that the update addresses relevant compatibility or stability issues.
5. Restore stable default memory settings before updating when appropriate.
6. Use reliable power and the manufacturer’s supported update method.
7. Verify memory detection and required BIOS settings afterward.

Updating Firmware Is Not a Substitute for Physical Inspection

A BIOS update cannot repair a partially seated module, damaged slot, bent processor contact, or unsupported memory type. Hardware installation and compatibility should be reviewed before firmware is changed without a clear reason.

Applying an update while the system is unstable can create an additional failure. The computer should be able to remain powered reliably throughout the process.

Integrated Graphics Can Reserve Part of System Memory

Processors with integrated graphics may use a portion of main system RAM as video memory. The firmware can reserve a fixed amount or allow Windows to allocate memory dynamically.

A modest difference between installed and usable memory may therefore be normal. A very large reservation should be checked against the firmware graphics settings and the actual display configuration.

Memory Difference	Possible Explanation
Small amount reserved	Firmware, devices, and integrated graphics may use part of system memory.
Several gigabytes reserved with integrated graphics	A large fixed graphics allocation may be configured.
Half of installed RAM is unavailable	A memory channel, mapping, firmware, or hardware issue is more likely.
Reservation changes after BIOS reset	A firmware setting influenced the usable amount.
Reservation appears only in Windows	Operating-system reporting and hardware mapping should be reviewed.

Installing a Graphics Card Does Not Always Disable Integrated Graphics

Some systems keep the integrated graphics controller active after a separate graphics card is installed. System memory may remain reserved for the integrated controller even when the monitor is connected to the dedicated card.

This can be intentional when the integrated graphics supports additional displays, video encoding, or troubleshooting. It should not be disabled without confirming whether any application or display depends on it.

Memory Remapping Helps the System Address Installed RAM

Hardware devices use portions of the system’s address space. Memory remapping allows RAM that would otherwise conflict with those hardware ranges to be addressed elsewhere.

Modern firmware normally manages this automatically. An incorrect or unavailable remapping setting can cause part of the installed memory to remain inaccessible, especially on older systems.

A 32-Bit Operating System Cannot Use Large Amounts of RAM

A 32-bit edition of Windows has a limited address space and generally cannot use all the memory installed in a modern high-capacity computer. Hardware reservations reduce the usable amount further.

Installing additional RAM does not remove that operating-system limitation. A supported 64-bit operating system is required to use larger memory capacities effectively.

The motherboard may detect every module correctly while a 32-bit operating system remains unable to use the full capacity.

The Windows Edition Can Also Have a Memory Limit

Different Windows editions can support different maximum memory capacities. A 64-bit installation does not automatically guarantee support for every amount the motherboard can accept.

The exact Windows edition and version should be compared with its supported memory limit before hardware is replaced.

A Windows Startup Setting Can Artificially Limit Memory

Windows startup configuration includes an advanced option that can set a maximum memory value for diagnostic purposes. If that option remains enabled with a reduced number, Windows may ignore part of the RAM recognized by the firmware.

This setting should not be changed randomly in an attempt to increase performance. Its existing value and purpose should be documented before modification.

• Compare the BIOS memory total with the amount shown in Windows.
• Confirm whether Windows reports the system as 64-bit.
• Identify the installed Windows edition.
• Review advanced startup memory limits.
• Restart and verify the result after any approved correction.

Resource Monitor Can Show Hardware-Reserved Memory

Windows diagnostic tools can display how physical memory is divided among active use, standby data, free capacity, and hardware reservation. This helps distinguish missing physical detection from memory that Windows recognizes but cannot allocate normally.

The hardware-reserved value should be interpreted together with the BIOS total, graphics configuration, and motherboard design. The number alone does not identify which component created the reservation.

Task Manager Reports More Than One Memory Measurement

Task Manager may show total available memory, current use, committed memory, cached data, speed, and the number of occupied slots. These values describe different aspects of the memory subsystem.

The reported occupied-slot count can be helpful, but it should not replace physical inspection or BIOS information. Firmware and software may not interpret every motherboard layout perfectly.

Windows Memory Value	General Meaning
Installed memory	The physical capacity Windows identifies in the system.
Usable memory	The portion available after hardware and system reservation.
In use	Memory currently assigned to Windows, applications, and drivers.
Cached	Memory retaining data that can be reused or released.
Committed	Memory promised across physical RAM and the paging file.
Hardware reserved	Capacity reserved for firmware or hardware devices.

Software Utilities Can Misreport Slot and Module Information

Hardware information programs read data supplied by the firmware and the memory modules. A utility may list all module identification records while Windows can use only part of the capacity.

Another program may show empty slots incorrectly because the motherboard reports its layout in an unusual way. Results should be compared across the BIOS, Windows, and physical inspection.

Module Identification Data Does Not Confirm Electrical Operation

Memory modules contain identification information describing capacity, supported timings, manufacturer data, and performance profiles. Software may read this information even when the module cannot operate reliably as system memory.

Seeing a module listed by a diagnostic utility does not prove that its full capacity passed memory training or is available to the operating system.

A computer can read a module’s identification data without successfully using the entire module for normal operation.

Memory Detection Can Change After a Cold Start

A computer may report the correct total after a warm restart but lose a module after being powered off for several hours. Temperature, contact resistance, firmware training, or marginal signal quality can affect the result.

Testing should include cold starts as well as ordinary restarts. A repair confirmed only after one warm reboot may not resolve an intermittent detection problem.

Temperature Can Affect Marginal Memory Connections

Components and circuit boards expand slightly as they warm and contract as they cool. A marginal socket contact, cracked solder joint, or contaminated module connection may change behavior with temperature.

The computer may begin with reduced memory and recognize the full amount after it has warmed, or the opposite may occur. This pattern points toward physical or electrical instability rather than an ordinary Windows setting.

Moving the Computer Can Change a Loose Connection

A heavy processor cooler, unsecured memory module, or flexing motherboard can shift slightly when a desktop is transported. The computer may arrive with less detected memory even though no parts were intentionally changed.

Internal components should be inspected after shipping or impact. Repeatedly operating the system while a large cooler or module remains loose can create additional damage.

• Record whether the problem began after transportation.
• Inspect every memory retaining clip.
• Check the processor cooler mounting hardware.
• Look for motherboard flex or case damage.
• Verify the total through several cold and warm starts.

Memory Error Lights Can Identify the Stage of Startup Failure

Many motherboards include diagnostic lights or displays that indicate whether startup stopped during processor, memory, graphics, or boot-device initialization. A memory light can confirm that the system is having difficulty training or detecting the installed modules.

The light does not prove that the modules themselves are defective. Processor socket contact, slot damage, firmware settings, and incompatible memory can produce the same indication.

Beep Codes Can Report Memory Detection Problems

Motherboards with an internal speaker may produce a beep pattern when memory initialization fails. The meaning varies by firmware and motherboard manufacturer.

The exact pattern should be recorded and compared with documentation for that system. Generic beep-code lists may identify the wrong firmware family.

Diagnostic Indication	What It Can Suggest
Memory warning light remains active	Memory training or detection did not complete.
Beep pattern occurs before video	A startup hardware condition was detected.
Board displays a memory-related code	The firmware stopped during a memory initialization stage.
Diagnostic indicator clears after reseating	Contact or installation may have influenced the failure.
No indicators appear despite missing capacity	The system may consider the reduced configuration usable.

Automatic Memory Recovery Can Hide an Unstable Profile

Some motherboards retry startup with safer settings after memory training fails. The computer may eventually reach Windows with a lower speed, fewer detected modules, or default values.

The successful startup can make it appear that the issue corrected itself. BIOS messages, event history, and current memory settings should be reviewed for evidence of automatic recovery.

Overclocking the Processor Can Also Affect Memory Detection

Processor overclocking can change voltages, internal clock relationships, and stress on the integrated memory controller. A system may lose a memory channel or fail training even when the RAM settings appear unchanged.

Testing should begin with supported processor and memory defaults. Several overclocked variables should not be adjusted simultaneously because the result will not identify which change restored detection.

Undervolting Can Create Similar Instability

Reducing processor or memory-related voltage may lower heat and power use, but an excessive reduction can make signal training unreliable. The computer may start inconsistently or recognize only part of the installed memory.

Default voltage should be used during diagnosis unless the platform requires a documented manufacturer setting.

1. Record existing overclocking and voltage settings.
2. Restore supported processor and memory defaults.
3. Perform a full power cycle.
4. Verify the detected capacity in the BIOS.
5. Test each module and channel if memory remains missing.
6. Reintroduce performance settings only after stable operation is confirmed.

Power Supply Instability Can Complicate Memory Training

Memory receives regulated power through the motherboard. An unstable power supply, damaged connector, or motherboard voltage circuit can interfere with startup and memory training.

Power problems usually produce additional symptoms such as restarts, startup retries, shutdowns under load, or changing diagnostic indicators. The reduced memory total should be evaluated as part of the complete system behavior.

The Main Motherboard Power Connectors Should Be Secure

A motherboard normally uses a large main power connector and an additional processor power connection. A partially seated connector can allow fans and lights to operate while voltage becomes unstable during initialization.

The computer must be disconnected from power before internal connectors are inspected. Burn marks, melted plastic, looseness, or discoloration require further repair rather than repeated reconnection.

Memory Problems Should Be Documented Before Parts Are Replaced

Replacing every module at once may restore the full capacity without proving whether the original problem involved one module, one slot, firmware settings, or processor contact.

A written record of module labels, slot positions, BIOS totals, startup behavior, and test results can prevent unnecessary replacement and help identify intermittent patterns.

Information to Record	Why It Is Useful
Module part number and capacity	Confirms the expected total and compatibility details.
Original slot position	Shows which channel and slot were involved.
BIOS memory total	Separates hardware detection from Windows reporting.
Windows installed and usable totals	Shows whether memory is reserved after firmware detection.
Cold-start and restart behavior	Identifies intermittent training or contact patterns.
Recent hardware changes	Connects the symptom with upgrades or repairs.

One Controlled Change at a Time Produces Clearer Results

Reseating every module, updating the BIOS, clearing CMOS, changing voltage, and reinstalling Windows during one repair attempt may restore the missing RAM without revealing the cause.

A controlled sequence allows each result to provide evidence. The next diagnostic step should depend on what changed after the previous one.

Memory diagnosis becomes more reliable when module, slot, channel, firmware, and operating-system results are tested separately.

Memory Slot Placement Can Affect Detection

Motherboards usually recommend specific slots when one or two memory modules are installed. The correct positions are commonly identified as A2 and B2, but the exact arrangement depends on the board.

Installing modules in unsupported positions may reduce performance or prevent the system from training the memory correctly. The motherboard manual should be checked instead of relying only on slot color.

A Failed Slot Can Make Good Memory Appear Defective

If a known-good module works in one slot but disappears in another, the slot or its signal path may be damaged. Dust, bent contacts, cracked solder joints, and motherboard damage can all interrupt communication.

Test Result	Possible Cause
One module fails in every slot	The module may be defective or incompatible.
Every module fails in one slot	The slot, motherboard, or memory channel may be damaged.
Modules work alone but not together	Compatibility, speed, voltage, or firmware may be involved.
Detected memory changes after movement	Loose contact, board flex, or processor socket contact may be involved.

An Entire Memory Channel Can Stop Working

Modern desktop systems divide memory slots into channels. If one channel fails, every module connected to that channel may disappear from the detected total.

The cause may be the motherboard, processor memory controller, processor socket, or excessive pressure from the processor cooler. Replacing the RAM alone may not restore the missing channel.

Processor Socket Contact Can Affect Installed RAM

Many modern processors contain the memory controller. Bent socket contacts, contamination, or improper processor seating can interrupt communication with one or more memory slots.

This problem often begins after processor replacement, cooler installation, or motherboard service. The computer may still start normally while detecting only half of the installed memory.

Missing memory can be caused by the connection between the processor and motherboard, not only by the RAM modules.

Excessive Cooler Pressure Can Cause Board Flex

A processor cooler that is tightened unevenly can flex the motherboard or change processor socket contact. This may disable a memory channel while leaving processor temperatures normal.

• Check that the correct mounting hardware was used.
• Confirm that screws were tightened evenly.
• Inspect the motherboard for visible bending.
• Review whether the problem began after cooler service.
• Do not adjust mounting pressure while the computer is powered.

Mixed Memory Kits Can Create Compatibility Problems

Two memory kits may share the same brand, capacity, and model number while using different internal chips or revisions. Each kit may operate correctly by itself but fail when combined.

A matched kit is tested as one complete set. Mixing separate kits increases the chance of training problems, reduced speed, instability, or missing capacity.

Different Speeds Usually Fall Back to a Common Setting

When memory modules have different speed ratings, the system normally attempts to use settings supported by all installed parts. The faster modules may operate at the speed of the slower modules.

If the combination remains unstable, the motherboard may fail to detect every module. Testing at standard default speed can show whether an aggressive memory profile is involved.

Performance Memory Profiles Can Affect Detection

XMP and similar profiles apply faster speeds, tighter timings, and different voltage settings. A profile that works with two modules may fail after all four slots are populated.

1. Record the current memory profile and speed.
2. Restore standard firmware defaults.
3. Restart the computer completely.
4. Check the detected capacity in the BIOS.
5. Test stability before enabling the performance profile again.

Four Modules Place More Load on the Memory Controller

A desktop may run reliably with two modules but struggle when four are installed. Filling every slot increases the electrical load and makes memory timing more demanding.

The full capacity may become available only at a lower speed. This does not necessarily mean that the modules are defective.

Configuration	Possible Result
Two matched modules	Higher rated speed may operate normally.
Four matched modules	A lower speed may be required for stability.
Two separate memory kits	Internal differences may cause training problems.
Mixed capacities or voltages	A reliable common configuration may not be available.

Motherboard and Processor Limits Must Both Be Checked

The motherboard may have enough physical slots for a certain amount of RAM while the processor supports a lower maximum capacity. The system is limited by the lowest supported component.

Maximum capacity per slot, supported memory generation, module density, rank arrangement, and firmware version should all be confirmed before purchasing an upgrade.

A Module Can Fit but Still Be Unsupported

Physical fit does not confirm full compatibility. Registered, unbuffered, ECC, and non-ECC memory can use similar-looking designs while requiring different motherboard and processor support.

Unsupported modules may prevent startup, appear at reduced capacity, or operate only under limited settings.

BIOS Updates Can Improve Memory Compatibility

Firmware updates may improve memory training and add support for newer processors or higher-capacity modules. An older BIOS may fail to identify a memory kit correctly.

The update must match the exact motherboard model and revision. BIOS updates should not be attempted while the computer has unstable power or frequent shutdowns.

A firmware update may improve compatibility, but it cannot repair a damaged module, slot, or processor socket.

Clearing CMOS Can Remove Unstable Memory Settings

The BIOS may retain memory timing and training information from an older configuration. Clearing CMOS or loading defaults can allow the motherboard to detect the current modules again.

Important boot, storage, fan, security, and virtualization settings should be documented first because a reset can change more than the memory configuration.

Integrated Graphics Can Reserve System Memory

A processor with integrated graphics may reserve part of the installed RAM for video use. Windows can therefore show the full installed amount but report a smaller usable total.

A small reserved amount may be normal. Several missing gigabytes should be compared with the firmware graphics allocation and the hardware-reserved value shown by Windows.

A 32-Bit Operating System Cannot Use Large Memory Capacities

A 32-bit edition of Windows has a limited address space and cannot use all the RAM installed in many modern desktop computers. Hardware reservations reduce the usable amount further.

The BIOS may detect every module correctly while Windows remains unable to use the full capacity. A supported 64-bit operating system is required for larger memory configurations.

Windows Startup Settings Can Limit Available RAM

An advanced Windows startup option can define a maximum amount of memory for diagnostic purposes. If a reduced value remains enabled, Windows may ignore part of the RAM recognized by the BIOS.

• Compare the BIOS total with the amount shown by Windows.
• Confirm that Windows is using a 64-bit installation.
• Check the memory limit of the installed Windows edition.
• Review advanced startup memory settings.
• Restart after making an approved correction.

Hardware-Reserved Memory Should Be Interpreted Carefully

Windows can show memory reserved for firmware, integrated graphics, and hardware devices. Diagnostic tools such as Task Manager and Resource Monitor can display this amount.

The value does not identify the cause by itself. It should be compared with the BIOS total, graphics configuration, operating-system architecture, and motherboard settings.

Reported Condition	Likely Direction
BIOS detects less RAM	Hardware installation, compatibility, slot, channel, or processor contact.
BIOS detects full RAM but Windows does not	Windows architecture, edition, or startup configuration.
Windows shows full installed RAM but less usable	Hardware reservation, graphics allocation, or firmware mapping.
Reserved amount changes after BIOS reset	A firmware setting influenced the available memory.

Software Utilities Can Show Misleading Slot Information

Hardware information programs read module and slot data supplied by the firmware. A utility may identify every module even though the computer cannot use the complete capacity.

Results should be compared with the BIOS, Windows, and physical inspection. Module identification data does not prove that the memory passed training or operates reliably.

Cold Starts Can Reveal Intermittent Detection Problems

A computer may detect all memory after a warm restart but lose one module after being powered off for several hours. Temperature, contact resistance, board flex, and marginal signal quality can change the result.

Testing should include several cold starts and restarts. One successful boot is not enough to confirm that the memory problem has been corrected.

Moving the Computer Can Affect Loose Components

A memory module, large processor cooler, or flexing motherboard may shift when a desktop is transported. The system can arrive at another location with less detected RAM even though no upgrade was performed.

Internal components should be inspected after shipping, impact, or case movement. Repeated operation with a loose cooler or module can worsen the damage.

A changing memory total usually indicates an unstable condition rather than a normal difference in software reporting.

Memory Testing Should Follow Capacity Detection

After the computer detects the full installed amount, the memory should still be tested for errors. Correct capacity does not guarantee that every module is stable under normal use.

A system can recognize all installed RAM while continuing to freeze, restart, corrupt files, or display blue screen errors because of unstable memory.

Built-In Memory Diagnostics Can Identify Some Failures

Windows includes a memory diagnostic that can test installed RAM after a restart. It may identify common errors, but a successful result does not rule out every intermittent or load-related problem.

Longer testing may be required when failures occur only after extended use, higher temperatures, or demanding applications.

One Module at a Time Produces Clearer Results

When an error appears with several modules installed, testing each module separately can help identify the failing part. The same known-good slot should be used whenever possible.

1. Record the original module positions.
2. Test one module in the recommended single-module slot.
3. Repeat the same test with each remaining module.
4. Record whether the computer starts and detects the correct capacity.
5. Run a memory test on every module that starts successfully.
6. Compare the results before replacing parts.

A Known-Good Module Can Help Test the Motherboard

A compatible known-good module can be moved through the required slots to determine whether one slot or channel consistently fails.

The test module must match the motherboard’s supported memory type. Using an incompatible part can create misleading results.

Diagnostic Result	Likely Direction
Known-good module works in every slot	The original module set or its configuration may be responsible.
Known-good module fails in one slot	The slot, channel, motherboard, or processor connection may be involved.
No module works in one channel	Processor socket contact or channel-level hardware should be inspected.
All modules work alone but fail together	Compatibility, speed, voltage, or controller load is more likely.

Memory Errors Can Damage More Than Performance

Unstable memory can corrupt documents, operating-system files, archives, databases, and application data. The computer may continue working long enough for damaged information to be saved back to storage.

Important files should be backed up before extensive stress testing when the system has already shown crashes or corruption.

Missing or unstable RAM should be treated as a reliability problem, not only as a reduction in speed.

Event Logs May Show Related Hardware Errors

Windows event logs can contain hardware, startup, shutdown, and memory-related errors recorded near the time of a crash. These entries may help connect reduced memory detection with broader system instability.

Event logs should be used with physical testing. A general hardware error does not always identify the exact module or slot.

Repeated Crashes Can Corrupt Windows

If unstable memory causes repeated shutdowns or data errors, Windows system files may become damaged. The computer can continue showing startup or application problems even after the memory issue is corrected.

System integrity checks may be appropriate after stable memory operation has been confirmed. Repairing Windows first will not solve defective hardware.

Replacing RAM Should Preserve Compatibility

A replacement module should match the supported memory generation, capacity, voltage, organization, and platform requirements. Choosing a part only by advertised speed can lead to another detection problem.

• Confirm the motherboard and processor memory limits.
• Match the required desktop memory generation.
• Check whether ECC or registered memory is supported.
• Use a complete matched kit when replacing several modules.
• Verify the recommended slot arrangement after installation.

Replacing One Module in a Matched Kit Can Create New Differences

Replacing only one failed module may produce a mixture of revisions, timings, or internal memory chips. The replacement can appear identical while behaving differently from the remaining modules.

For systems that require maximum stability, replacing the complete matched kit may be more reliable than combining old and new modules.

The Full Capacity Should Be Verified in More Than One Place

After repair, the expected total should be confirmed in the BIOS and Windows. The usable amount, memory speed, and occupied slots should also be reviewed.

Checking only one software utility may miss a hardware-reserved amount or incorrectly reported slot layout.

Verification Point	What It Confirms
BIOS total	The firmware detects the installed physical capacity.
Windows installed amount	The operating system recognizes the firmware-reported memory.
Usable amount	The capacity remaining after hardware reservation.
Memory speed	The system is operating at the intended stable setting.
Repeated restarts	The capacity remains consistent through normal startup cycles.

Several Cold Starts Help Confirm the Repair

An intermittent contact or training problem may disappear temporarily after a module is reseated. The computer should be shut down completely and tested again after cooling.

The detected amount should remain consistent across cold starts, ordinary restarts, and normal daily use.

Heavy Workloads Can Expose Remaining Instability

A desktop may start correctly and display the full memory total but fail when applications begin using a larger portion of RAM. Video editing, gaming, virtual machines, and large data workloads can reveal problems that ordinary web browsing does not.

Testing should reflect the computer’s normal purpose without placing important data at unnecessary risk.

Professional Diagnosis May Be Needed When a Channel Is Missing

If multiple known-good modules fail in the same channel, the repair may require processor removal, socket inspection, motherboard testing, or cooler adjustment.

Processor socket contacts and motherboard traces are delicate. Improper handling can turn a partial memory problem into a system that no longer starts.

A Practical Troubleshooting Order Reduces Unnecessary Replacement

1. Confirm the capacity physically installed.
2. Compare the BIOS total with the Windows total.
3. Reseat the modules in the recommended slots.
4. Restore supported default memory settings.
5. Test each module individually.
6. Test the motherboard slots with known-good compatible memory.
7. Review processor socket contact if an entire channel remains unavailable.
8. Confirm stability before restoring performance profiles.

The Cause Should Be Identified Before the Computer Returns to Use

A temporary return of the full memory total does not prove that the problem is resolved. Loose contact, motherboard flex, marginal compatibility, or unstable firmware settings can cause the issue to return later.

The final repair should explain why the memory was missing and confirm that the same condition no longer appears through repeated testing.

A reliable memory repair restores the full installed capacity, confirms stable operation, and verifies that the result remains consistent after normal restarts and use.

Complete Memory Detection Supports Reliable Desktop Performance

When a desktop detects less RAM than is physically installed, the cause can range from a loose module to a failed memory channel or operating-system limitation. Comparing firmware and Windows information helps separate physical detection from usable-memory reporting.

Careful module testing, correct slot placement, compatible settings, and repeated verification can restore the expected capacity without replacing unrelated components.
