Adapter Detection Does Not Confirm That Battery Charging Is Occurring

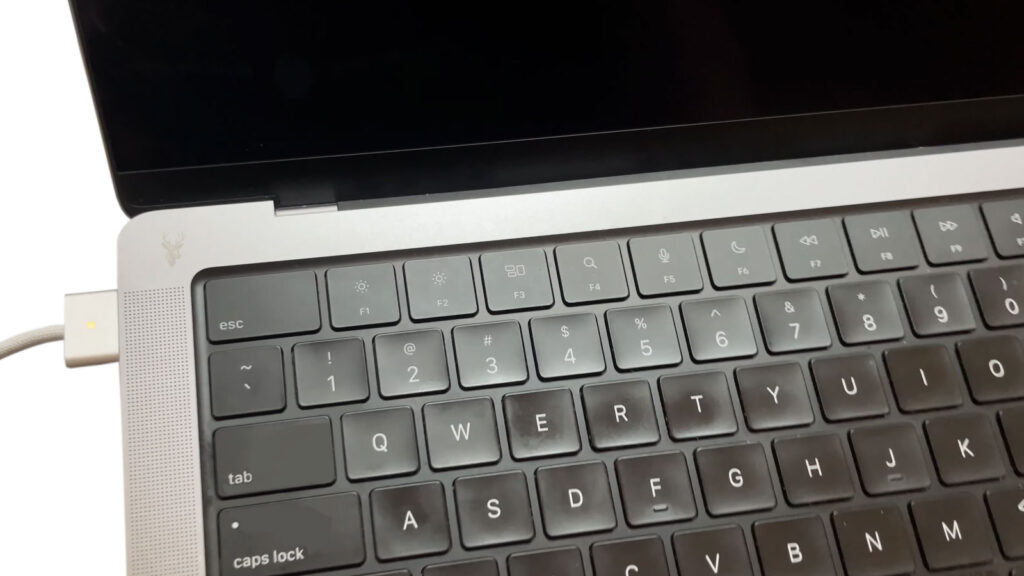

A Mac laptop can show that a power adapter is connected while the battery percentage remains unchanged or continues to decrease. The menu bar may display a power-plug symbol, System Information may list an attached charger, and the computer may operate normally from external power without actually adding energy to the battery.
This behavior does not always mean that the battery or charging circuit has failed. macOS can pause charging intentionally, a low-wattage adapter may provide enough power to run the computer without supplying additional battery current, and temperature protection can temporarily prevent charging.
Other cases involve a damaged USB-C cable, contaminated charging port, worn battery, defective adapter, liquid damage, failed power-management component, or communication problem between the charger and the computer. Diagnosis begins by separating normal charging management from an actual hardware fault.
The Battery Icon Can Represent Several Different Power States
The battery symbol does not always indicate the same condition. A lightning symbol generally suggests active charging, while a power-plug symbol can indicate that the Mac is connected to external power but is not currently charging the battery.
The wording shown in the battery menu provides more useful information than the icon alone.
| Displayed Condition | General Meaning |
|---|---|
| Charging | The adapter is supplying current to the battery |
| Not Charging | External power is detected, but battery charging is paused or unavailable |
| Power Source: Power Adapter | The Mac is operating primarily from external power |
| Battery Is Not Charging | The system has detected a condition preventing active charging |
| Service Recommended | Battery condition or performance has declined enough to require evaluation |
The message may change as workload, temperature, battery percentage, and adapter capacity change.
A Low-Wattage Adapter May Run the Mac Without Charging It
Mac laptops are designed around specific power requirements. A smaller USB-C adapter may be accepted electrically and identified by the computer, but it may not provide enough wattage to operate the system and charge the battery at the same time.
During light use, the battery percentage may rise slowly. Under processor, graphics, storage, or display load, all available adapter power may be consumed by the computer, leaving nothing available for charging.
- The Mac may display that a power adapter is connected.
- The battery percentage may remain at the same level for a long period.
- The battery may discharge slowly during demanding work.
- Charging may begin after applications are closed or the computer sleeps.
- The adapter may become unusually warm while operating near its limit.
Testing should be performed with an adapter that meets the wattage recommended for the exact Mac model.
USB-C Power Delivery Requires Communication Before Full Power Is Supplied
USB-C charging does not begin by sending maximum power through every connected cable. The adapter, cable, and Mac communicate to determine which voltage and current levels are supported.
If this negotiation fails or produces a lower power agreement, the Mac may receive only limited power. The adapter can still be detected even though the available wattage is below what the computer requires for normal charging.
- The Mac detects that a USB-C power source is present.
- The adapter identifies its supported power levels.
- The cable communicates its current-handling capability when required.
- The Mac requests an appropriate power profile.
- Charging begins only after a compatible agreement is established.
A problem with any part of this communication path can reduce available power without causing the connection to disappear completely.
USB-C Cables Can Differ in Their Charging Capacity
Two USB-C cables can look nearly identical while supporting different charging levels. Some are designed primarily for phones, accessories, or lower-power devices. Others include the internal wiring and identification required for higher-wattage laptop charging.
A cable may also become damaged near one connector while continuing to provide partial power. The Mac can recognize the adapter, but unstable communication or increased resistance may prevent normal charging.
| Cable Condition | Possible Effect |
|---|---|
| Low-current cable | The negotiated charging wattage may be limited |
| Broken internal conductor | Power may disconnect or fluctuate when the cable moves |
| Damaged connector shell | The plug may not sit securely in the port |
| Contaminated contacts | Communication or current flow may become unreliable |
| Excessive cable length or poor construction | Voltage loss and heat may increase under load |
A known-good cable rated for the adapter’s full output should be used during diagnosis.
Optimized Battery Charging Can Pause Charging Intentionally
macOS includes battery-health features intended to reduce long-term chemical aging. Depending on the model and operating-system version, the Mac may learn charging patterns and delay charging beyond a certain level until it expects the computer will be needed on battery power.
The system may remain connected to the adapter while showing that charging is paused. This is normal when macOS is deliberately managing the battery rather than responding to a hardware failure.
- Charging may pause around a frequently maintained percentage.
- The battery menu may mention optimized charging.
- The Mac may resume charging before the user’s normal unplugging time.
- The behavior may change after travel or a different work schedule.
- An option may be available to charge fully for the current session.
Disabling battery optimization temporarily can help determine whether charging is being paused by software, but the setting should not be changed permanently without a clear reason.
Battery Health Management Can Limit the Maximum Charge Level
Some Mac models use battery health management to reduce the rate of chemical aging. The system evaluates temperature history, charging patterns, and battery condition, then may adjust the maximum charge level.
A battery that stops below 100 percent is therefore not automatically defective. The system may be protecting it from remaining fully charged for long periods.
| Charging Pattern | Possible Explanation |
|---|---|
| Stops near the same percentage repeatedly | Battery optimization or health management may be active |
| Resumes after selecting a full-charge option | The pause was likely intentional |
| Stops at different low percentages | Adapter, cable, battery, or temperature problems may be present |
| Charges only while sleeping | The adapter may be underpowered during active use |
| Never increases even while shut down | A hardware or battery condition becomes more likely |
The charging percentage should be observed over time rather than judged from a single moment.
Battery Temperature Can Temporarily Stop Charging
Lithium-ion batteries are charged only within controlled temperature ranges. A battery that is too hot or too cold may be prevented from charging until its temperature returns to an acceptable level.
Heat can develop from demanding workloads, blocked ventilation, a warm room, direct sunlight, or a failing battery. Low temperature can occur when the computer has been stored or transported in a cold environment.
- Charging may pause during processor-intensive work.
- The underside of the Mac may feel unusually warm.
- Fans may run at high speed while charging is suspended.
- Charging may resume after the computer cools.
- A temperature sensor fault may report an unsafe condition incorrectly.
The Mac should be allowed to return gradually to normal room temperature. External heating or rapid cooling should not be used.
A Worn Battery May Accept Power Slowly or Stop Charging Early
Rechargeable batteries lose capacity and electrical performance as they age. A worn battery may still be detected correctly while charging slowly, stopping at an inconsistent percentage, or losing charge quickly after the adapter is removed.
Battery cycle count is useful, but it does not provide a complete diagnosis. Heat exposure, storage conditions, deep discharge, manufacturing variation, and age can affect a battery before or after a typical cycle expectation is reached.
- Review the battery condition reported by macOS.
- Compare full-charge capacity with the original design capacity.
- Observe whether the percentage rises consistently.
- Check whether the Mac remains stable after the adapter is removed.
- Inspect for swelling or physical case distortion.
A battery that is swollen should not remain in service, even when it still holds some charge.
Battery Swelling Can Affect More Than Charging
A deteriorating lithium-ion battery can expand and place pressure on surrounding components. In a Mac laptop, this pressure may affect the trackpad, keyboard, lower case, internal cables, and battery connector.
- The trackpad may become difficult to click.
- The lower case may separate or bulge.
- The Mac may rock on a flat surface.
- The keyboard may appear raised.
- Charging behavior may become inconsistent.
A swollen battery should not be punctured, compressed, bent, or forced back into shape. The computer should be powered down and evaluated for safe battery replacement.
Charging Ports Should Be Tested Individually
Mac models with multiple USB-C ports may not behave identically when one port is contaminated, physically damaged, or affected by a failed port-control circuit. The same adapter and cable should be tested in each charging-capable port.
A Mac that charges through one side but not the other may have a localized port, cable, daughterboard, or motherboard problem rather than a defective battery.
- Inspect each port for compacted debris or damaged contacts.
- Confirm that the connector inserts fully and evenly.
- Test the same known-good adapter and cable in every port.
- Disconnect hubs and docks during direct charging tests.
- Observe whether movement causes charging to start and stop.
Metal tools should not be inserted into a USB-C port while the battery or adapter remains connected.
MagSafe Connections Can Be Detected Even When Charging Current Is Limited
Mac laptops that use MagSafe charging can recognize the adapter through the communication contacts while still receiving little or no useful charging current. The connector light may illuminate, and the Mac may report external power, but contamination, worn pins, cable damage, or excessive electrical resistance can prevent normal charging.
The small spring-loaded pins inside some MagSafe connectors must move freely and make even contact. A pin that remains recessed can interfere with power delivery or charger identification.
- The connector light may remain off, amber, or green unexpectedly.
- Charging may begin only after the connector is repositioned.
- The adapter may disconnect when the cable is moved.
- One contact may appear darker or lower than the others.
- The connector or port may become warmer than normal.
A MagSafe connection that becomes hot, sparks repeatedly, or shows melted plastic should be disconnected and inspected before further use.
The Adapter Light Does Not Confirm Complete Charger Health
An illuminated MagSafe indicator confirms that some communication and electrical activity are occurring, but it does not prove that the adapter can maintain its rated output under load. A weakened adapter may identify itself correctly while voltage falls when the Mac begins drawing more current.
| Indicator Behavior | Possible Meaning |
|---|---|
| Amber light remains steady | The system is requesting or attempting battery charging |
| Green light appears with a low battery | Charging may be paused, unavailable, or incorrectly detected |
| Light flickers when the cable moves | The connector, cable, or port may have an intermittent connection |
| No light but Mac detects power | The indicator circuit may fail while limited power remains present |
| Light changes after reconnecting | Power negotiation or contact quality may be inconsistent |
Testing with a compatible known-good adapter remains more reliable than judging the charger from the indicator color alone.
System Information Can Reveal the Power Available to the Mac
macOS System Information can display details about the connected charger and battery. Depending on the model, the report may include charger wattage, charging status, cycle count, full-charge capacity, condition, and whether the battery is currently accepting current.
A charger listed at a much lower wattage than expected can indicate an underpowered adapter, incompatible cable, failed negotiation, or incorrect charger identification.
- Open the system hardware information report.
- Locate the power or battery section.
- Review the detected charger wattage.
- Check whether charging is listed as active.
- Compare the reported values before and after changing the adapter or cable.
Reported values should be interpreted as diagnostic evidence rather than exact electrical measurements. A hardware fault can exist even when the information appears normal.
Battery Current Direction Helps Distinguish Charging From Discharging
Some diagnostic utilities and system reports show whether current is flowing into or out of the battery. Positive or negative values may be displayed differently depending on the tool, so the direction must be interpreted according to the software being used.
If the Mac reports an attached adapter while battery current continues moving in the discharge direction, the computer is consuming more power than the adapter is supplying or the charging path is not delivering current to the battery.
| Observed Current Pattern | Diagnostic Direction |
|---|---|
| Charging current appears only while sleeping | The adapter may be insufficient during active use |
| No charging current with multiple adapters | Battery, port, sensor, or logic-board fault becomes more likely |
| Current starts and stops repeatedly | Connection, temperature, or control instability may be present |
| Current remains low near full charge | Normal charge tapering may be occurring |
| Battery discharges rapidly despite adapter detection | The adapter may provide only part of the required system power |
Charging current naturally decreases as a healthy battery approaches its upper charge level, so low current near full capacity is not necessarily abnormal.
USB-C Hubs and Docks Can Reduce Available Charging Power
A dock may accept a high-wattage adapter but reserve part of that power for connected displays, storage devices, Ethernet controllers, and USB accessories. The Mac receives only the remaining negotiated amount.
Some hubs advertise pass-through charging while supporting considerably less power than the adapter connected to them. Others become unstable when several devices are active simultaneously.
- The Mac may charge normally when connected directly to the adapter.
- Charging may stop when an external drive or monitor is attached.
- The dock may negotiate a lower power level than expected.
- Power may disconnect when the dock becomes warm.
- A firmware issue in the dock may affect USB-C power delivery.
Direct connection between the Mac and a known-good adapter removes the dock and its accessories from the charging path.
Demanding Applications Can Consume Battery Power While the Adapter Is Connected
High processor and graphics activity can raise power consumption beyond the output available from a low-capacity or weakened charger. Video editing, gaming, software development, virtualization, external displays, and high screen brightness can all increase demand.
The Mac may draw part of its required power from the battery even though the adapter remains connected. This combined use allows performance to continue temporarily, but the battery percentage declines.
- Close demanding applications and disconnect unnecessary accessories.
- Reduce display brightness temporarily.
- Allow the Mac to remain idle while connected directly to the charger.
- Observe whether the battery percentage begins increasing.
- Repeat the test with the recommended adapter wattage.
If charging resumes only when system demand is reduced, adapter capacity or charger performance should be investigated before replacing the battery.
A Deeply Discharged Battery May Need Time Before the Percentage Changes
A battery that has remained empty for an extended period may enter a low-voltage protection state. When power is connected, the charging circuit may apply a limited recovery current before normal charging begins.
During this period, the Mac may show a low-battery symbol, remain unable to start, or report a percentage that does not change immediately.
| Behavior After Deep Discharge | Possible Interpretation |
|---|---|
| Mac starts after several minutes on power | The battery may have required an initial recovery charge |
| Percentage remains at one percent briefly | The system may still be stabilizing the battery voltage |
| Mac shuts off when the adapter is removed | The battery may not yet hold useful charge or may have failed |
| No response after extended charging | Adapter, battery, port, or charging-circuit diagnosis is required |
| Charging repeats in short cycles | The battery may be unable to maintain stable voltage |
A severely depleted battery should be charged with the correct adapter in a normal-temperature environment. Repeatedly pressing the power button does not accelerate recovery.
Power-Management Resets Can Correct a Stalled Charging State
Power-management hardware controls charging, sleep, startup, temperature response, and communication with the battery and adapter. On some Intel-based Mac models, resetting the system management controller can clear an incorrect power state.
The correct reset procedure varies by model, battery design, and security-chip configuration. Apple silicon Macs generally manage these functions differently and do not use the same manual reset process.
- A reset may correct adapter recognition that remains stuck.
- Battery status information may refresh after restarting.
- Fans or indicator lights may return to normal behavior.
- The procedure does not repair damaged hardware.
- Repeated resets should not replace proper diagnosis.
Model-specific instructions should be followed because an incorrect key sequence may simply restart the Mac without resetting the intended controller.
A Battery Data Error Can Prevent Charging Authorization
The battery contains monitoring and control electronics that report voltage, temperature, capacity, and safety information to the Mac. Charging can be restricted when this communication is missing, inconsistent, or outside expected limits.
A physically connected battery may appear in macOS while reporting incorrect values. In other cases, the battery may not be detected at all, or the system may display a replacement warning.
- Cycle count may appear unavailable or unrealistic.
- Battery temperature may be missing or incorrect.
- Capacity values may change sharply between restarts.
- The percentage may remain frozen for long periods.
- The Mac may refuse charging because it cannot verify safe battery conditions.
Communication faults can originate inside the battery, at its connector, along a data line, or within the logic-board charging controller.
Battery Connectors Can Be Partially Seated After Service
If charging problems begin after a battery, trackpad, keyboard, speaker, or logic-board repair, the internal battery connection should be considered. A connector can appear aligned while one edge remains slightly raised.
Some Mac models use separate battery power and data connections, while others combine them in one assembly. Damage to a small communication cable can allow partial battery detection without normal charging.
- Shut down the Mac and disconnect external power.
- Follow the correct procedure for isolating the battery.
- Inspect the connector and surrounding board area.
- Check for bent contacts, torn cables, or trapped debris.
- Reconnect the battery evenly without forcing the socket.
Internal inspection should not be attempted when the battery is swollen, punctured, leaking, or unusually hot.
Liquid Exposure Can Damage Charging Circuits Gradually
Liquid entering near a keyboard, USB-C port, MagSafe connector, or side vent can affect the charging path without causing immediate total failure. Residue and corrosion may increase electrical resistance or interrupt communication lines over time.
The Mac may continue recognizing the adapter while charging becomes intermittent, limited to one port, or unavailable after the board warms.
| Liquid-Related Pattern | Possible Area of Concern |
|---|---|
| Only one USB-C port charges | Localized port or controller damage |
| Charging changes when humidity is high | Corrosion or conductive residue may be present |
| Adapter repeatedly connects and disconnects | Port communication or power-path instability |
| Battery is detected but receives no current | Charging controller or battery power path may be damaged |
| Problem worsens over several days | Ongoing corrosion may be expanding |
A liquid-exposed Mac should not be repeatedly charged in an attempt to force the battery percentage upward. Applying power can accelerate damage when conductive residue remains on the board.
Charging-Control Components Can Fail Independently of Adapter Detection
The logic board contains circuits that identify the adapter, negotiate incoming power, switch between external and battery sources, monitor current, and control battery charging. A fault in one section may leave other functions operational.
For example, the Mac may identify a charger and run from it while a failed current-sensing circuit or charging-control component prevents energy from reaching the battery.
- The Mac operates normally while plugged in but shuts off immediately when disconnected.
- Multiple known-good adapters produce the same result.
- System Information detects the adapter but shows no charging current.
- The battery is recognized and reports a plausible temperature.
- Charging remains unavailable through every supported port.
This pattern increases suspicion of an internal battery, connector, or logic-board fault after external accessories and software controls have been eliminated.
Diagnostic Testing Should Compare One Variable at a Time
Changing the adapter, cable, port, dock, workload, and battery setting all at once can make the result difficult to interpret. A controlled process keeps every condition the same except the item being tested.
- Record the initial battery percentage and displayed charging message.
- Connect the recommended adapter directly to the Mac.
- Test with a known-good charging cable when applicable.
- Try each supported charging port separately.
- Allow the computer to remain idle and observe the percentage over time.
- Review battery and charger information in macOS.
- Repeat the comparison with a known-good compatible adapter.
A repeatable result helps distinguish an accessory problem from a battery or logic-board condition and reduces the chance of replacing a functional component.
Apple Diagnostics Can Identify Some Battery and Power Problems
Built-in Apple Diagnostics can test selected hardware and may report reference codes related to the battery, charging system, temperature sensors, or power management. A reported code can provide useful direction, but a passing result does not confirm that every charging component is working correctly.
Intermittent cable faults, marginal charging current, liquid-related corrosion, and problems that appear only after the computer becomes warm may not occur during a short diagnostic test.
- Disconnect unnecessary external accessories before testing.
- Use the correct startup procedure for the Mac model.
- Record every reference code exactly as displayed.
- Repeat testing if the charging problem is intermittent.
- Compare the result with battery and adapter information in macOS.
Diagnostic codes should be considered together with the physical symptoms and controlled adapter testing.
Battery Percentage Calibration Problems Can Resemble Failed Charging
The percentage shown in macOS is an estimate based on battery voltage, current flow, capacity history, and data reported by the battery controller. If those calculations become inaccurate, the displayed number may remain fixed even while a small amount of charging is occurring.
The percentage may then change suddenly after a restart, extended charging period, or normal discharge cycle. This behavior is different from a battery that receives no charging current at all.
| Percentage Behavior | Possible Interpretation |
|---|---|
| Remains fixed and then jumps upward | The battery estimate may have refreshed |
| Falls rapidly after disconnecting power | Usable battery capacity may be very low |
| Changes after restarting macOS | Status reporting may have been delayed |
| Stays at zero despite stable current input | Battery data or internal cell failure may be present |
| Moves normally with another battery | The original battery or its control electronics are suspect |
Repeated full discharge cycles should not be performed simply to force recalibration. Deep discharge adds wear and may leave a weak battery unable to start the computer.
Shutdown Testing Helps Confirm Whether the Battery Stores Useful Energy
A Mac that operates normally from the adapter but shuts off immediately after the charger is removed may have a battery that is empty, disconnected, internally failed, or unable to deliver current.
If the battery percentage appears reasonable but the computer cannot remain on for even a few seconds, the displayed percentage should not be trusted without further testing.
- Save all work and close active applications.
- Confirm that the battery is detected in macOS.
- Allow the Mac to charge with the correct adapter.
- Disconnect the adapter while the computer is idle.
- Observe whether the Mac remains powered and whether the percentage changes normally.
This test should not be repeated when the battery is swollen, overheating, or causing unexpected shutdowns during file writes.
Sleep and Shutdown Charging Can Separate Adapter Capacity From Battery Failure
Charging the Mac while it is asleep or fully shut down greatly reduces system power consumption. More of the adapter’s available output can then be directed toward the battery.
If the battery charges normally while the Mac is off but stops or discharges during active use, the adapter wattage, cable capability, dock, workload, or power negotiation should be investigated.
| Charging Comparison | Diagnostic Direction |
|---|---|
| Charges while shut down but not while active | Available adapter power may be insufficient under load |
| Does not charge in any power state | Battery or charging hardware becomes more likely |
| Charges only through one port | Localized port or controller failure is possible |
| Charges after accessories are removed | A dock or peripheral may be consuming or disrupting power |
| Charges after cooling | Temperature protection may have been active |
The same adapter, cable, and port should be used during each comparison so that only the Mac’s operating state changes.
Unexpected Heat Can Reveal Resistance in the Charging Path
Electrical resistance at a damaged connector, cable, port, or board connection can convert part of the incoming power into heat. The Mac may still detect the adapter while less power reaches the charging circuit.
- The cable connector may become hotter than the adapter body.
- One USB-C port may feel warmer than the others.
- Charging may stop after several minutes.
- The adapter may repeatedly reconnect as temperature rises.
- Plastic near the port may show discoloration or deformation.
A hot connector should be disconnected rather than repositioned repeatedly. Continuing to use a high-resistance connection can damage both the cable and the Mac.
Replacing the Battery Is Appropriate Only After the Charging Source Is Verified
A worn battery is a common cause of poor runtime and inconsistent charging, but battery replacement should not be the first step when the Mac receives inadequate power from the adapter, cable, dock, or port.
Installing a new battery without correcting the original charging fault can leave the same symptom unchanged. It can also expose the replacement battery to repeated low-power cycling or unstable charging.
- Verify the recommended adapter wattage.
- Test with a known-good compatible cable.
- Connect directly without a hub or dock.
- Confirm that every charging port has been evaluated.
- Review battery condition, capacity, temperature, and current flow.
- Replace the battery only when the evidence supports battery failure.
A replacement battery should match the exact Mac model and should not be installed if the logic board is delivering abnormal charging voltage or current.
Logic-Board Repair May Be Needed When External Components Test Correctly
When several known-good adapters and cables produce the same result, all supported ports behave identically, the battery is recognized, and software charging controls have been excluded, the fault may be located on the logic board.
Possible failures include damaged USB-C controllers, current-sensing circuits, power-path transistors, charging-control components, corroded data lines, or burned connector pads.
Adapter recognition confirms only part of the charging system. Current must still pass through several control and protection stages before it reaches the battery.
Board-level diagnosis may require voltage measurements, current monitoring, thermal inspection, and schematic-guided testing. Random component replacement is unlikely to identify an intermittent charging fault reliably.
Charging Problems Should Be Verified After Repair
A repaired Mac should be tested through more than one connection cycle. The battery percentage should increase consistently, the adapter should remain detected, and the charging state should not change when the cable is moved gently.
- Test charging from a low battery percentage.
- Confirm operation while the Mac is active and while it sleeps.
- Observe charging through every supported port.
- Verify that the battery powers the Mac after the adapter is removed.
- Check for abnormal heat at the adapter, cable, and charging port.
- Confirm that no battery or power warnings return.
The original workload and accessory configuration should also be tested when they were part of the reported problem.
A Recognized Adapter Is Only the Beginning of the Charging Process
A Mac can identify its power adapter without actively charging because adapter detection, power negotiation, system operation, battery authorization, and battery charging are separate parts of the power system.
Normal battery optimization, low adapter wattage, heavy system demand, temperature protection, cable limitations, port damage, worn cells, communication errors, and logic-board faults can all produce a similar message in macOS.
Testing the correct adapter directly, comparing cables and ports, reviewing battery information, reducing system demand, checking charging while shut down, and inspecting for heat or physical damage can separate a temporary charging pause from a hardware failure. A methodical diagnosis protects the battery, prevents unnecessary replacement, and identifies whether the repair belongs in the charger, battery, port, or logic board.
