The Purpose of Reserved Capacity Inside Modern SSDs
Solid-state drives have replaced traditional hard drives in many desktop and laptop computers because they provide faster startup times, shorter application loading times, and improved responsiveness. While most computer users notice these speed improvements immediately, far fewer realize that part of every SSD is intentionally reserved for tasks that never appear inside Windows or macOS.
This reserved storage is known as over-provisioning. Although it reduces the amount of space available for storing files, it serves an important purpose behind the scenes by helping the drive distribute writes more evenly, replace worn memory cells, and maintain stable performance over years of normal use.
Unlike a mechanical hard drive that stores information on spinning magnetic platters, an SSD records data inside flash memory cells. Those cells can only be written a limited number of times before they gradually wear out. Modern SSD controllers constantly manage this wear, and over-provisioned space gives them additional room to perform that work efficiently.
Reserved Capacity That Most Users Never Notice
When purchasing a drive advertised as 500 GB or 1 TB, many people assume every gigabyte is available for personal files. In reality, manufacturers often reserve part of the flash memory for internal maintenance. This reserved area is not missing storage or a manufacturing defect. Instead, it forms part of the drive’s long-term reliability strategy.
The controller inside the SSD uses this hidden capacity to move data between memory cells, retire worn blocks, prepare empty locations for future writes, and replace sections of memory that eventually reach the end of their useful life. All of these operations occur automatically without requiring any action from the computer user.
| Visible to the User | Managed Internally by the SSD |
|---|---|
| Documents and photos | Wear leveling |
| Installed programs | Replacement of worn flash blocks |
| Operating system files | Garbage collection |
| Available free space | Background data movement |
Because these maintenance tasks occur continuously, an SSD with sufficient working space can often maintain more consistent performance than one that has little room available for internal management.
Flash Memory Works Differently From Magnetic Storage
A traditional hard drive can overwrite existing sectors directly. Flash memory cannot. Before new information is written, previously used flash cells usually need to be erased first. This additional step changes how SSDs handle incoming data and explains why background maintenance plays such an important role.
Instead of modifying data exactly where it already exists, the SSD controller frequently writes information into new locations while reorganizing older blocks later. This process allows the drive to continue operating efficiently without interrupting normal computer use.
Unused storage inside an SSD is not wasted capacity. It gives the controller flexibility to manage flash memory efficiently throughout the life of the drive.
Wear Leveling Depends on Available Working Space
Every flash memory cell has a finite write lifespan. Rather than allowing one area of the drive to receive all write activity, SSD controllers spread writes across many different memory blocks. This technique, known as wear leveling, helps prevent individual sections from wearing out significantly faster than the rest of the drive.
Over-provisioned capacity provides additional locations where data can be temporarily relocated while this balancing process takes place. The controller therefore has more flexibility when deciding where future writes should occur, helping distribute activity more evenly over time.
- Reduces concentrated wear on individual flash cells.
- Provides spare blocks when older ones become unreliable.
- Supports background housekeeping without interrupting normal use.
- Helps maintain more consistent write performance as the drive ages.
For most users, these operations remain completely invisible. The computer simply continues functioning normally while the SSD controller performs millions of maintenance decisions every day.
Garbage Collection and the Need for Empty Blocks
Over time, files are created, modified, moved, and deleted. From the user’s perspective, deleting a file appears to free the space immediately. Inside an SSD, however, the process is more complicated because flash memory is erased in groups called blocks rather than one small piece at a time.
A block may contain several pages of valid data mixed with pages that are no longer needed. Before the block can be reused, the controller must copy the valid information elsewhere, erase the entire block, and prepare it for new writes. This maintenance process is commonly called garbage collection.
Over-provisioned space gives the controller empty blocks that can receive valid data during this reorganization. Without enough working room, the drive may need to perform more copying and erasing before each new write can be completed. That extra activity can reduce performance and increase write amplification.
Write Amplification and Unnecessary Flash Activity
Write amplification occurs when the SSD must write more data internally than the computer originally requested. A program may save a relatively small file, but the controller could be required to move additional valid information before space becomes available.
For example, a computer may request a 20 MB change while the SSD internally relocates a much larger amount of data as part of the same operation. The additional writing is not visible to the user, but it contributes to flash wear and can affect performance during sustained workloads.
| Storage Condition | Controller Activity | Possible Result |
|---|---|---|
| Plenty of empty working space | Data can be placed into prepared blocks | More consistent write performance |
| Drive nearly full | Valid data may need to be moved before writing | Higher internal activity |
| Heavy repeated writes | Garbage collection runs more frequently | Additional flash wear |
| Adequate over-provisioning | Controller has more spare blocks available | Lower pressure during maintenance |
Over-provisioning does not eliminate write amplification completely. It gives the controller more options, which can reduce how often complicated block-reorganization work is required.
Performance Changes as an SSD Fills Up
An SSD often performs best when it has a reasonable amount of unused capacity. As the visible storage becomes crowded, the controller has fewer immediately available locations for incoming data. Background cleanup becomes more demanding because valid information may be scattered across many partially used blocks.
This does not mean a drive will suddenly become unusable when it reaches a particular percentage. The effect depends on the SSD controller, flash type, firmware, workload, and amount of factory-reserved capacity. Some drives manage limited free space better than others.
- Fresh drives contain many empty blocks that can accept data quickly.
- Normal use gradually spreads valid and invalid data across the flash memory.
- As available capacity decreases, more blocks may require cleanup before reuse.
- Long write operations can slow while the controller reorganizes data in the background.
- Deleting files may restore working space, although cleanup may not occur immediately.
Users may notice this behavior while copying large folders, installing major programs, exporting video, working with virtual machines, or performing other tasks that create sustained write activity. Short everyday operations may remain fast because temporary cache systems can hide the underlying slowdown.
The Difference Between Free Space and Over-Provisioned Space
Visible free space and factory over-provisioning are related, but they are not identical. Free space appears inside the operating system and can eventually be occupied by user files. Factory-reserved capacity remains under the control of the SSD and is normally unavailable for personal storage.
Both can assist the controller. A drive with substantial visible free space has more unused locations that can support internal maintenance. Dedicated over-provisioned capacity provides a protected reserve that remains available even when the user fills most of the visible storage.
A drive can show little free space to the user while still retaining some factory-reserved capacity, but that reserve should not be treated as permission to keep the visible storage permanently full.
Maintaining ordinary free space remains useful for the operating system as well. Windows and macOS may need room for updates, temporary files, application caches, virtual memory, restore information, and other background tasks unrelated to the SSD controller itself.
Manufacturer Capacity and the Numbers on the Label
Storage labels can create confusion because manufacturers usually describe capacity with decimal measurements, while operating systems may display storage using a different calculation. A drive sold as 500 GB may therefore appear smaller after installation even before partitions and system files are considered.
Not every difference between the advertised number and the displayed number represents over-provisioning. Part of the difference can result from decimal and binary measurement conventions. Additional capacity may also be occupied by partitions, recovery tools, formatting structures, or reserved system areas.
- Advertised capacity: The manufacturer’s rounded storage rating.
- Usable formatted capacity: The amount available after measurement differences and formatting.
- System-reserved space: Capacity used by recovery, boot, or operating system partitions.
- SSD over-provisioning: Flash capacity managed privately by the drive controller.
Because several factors affect the displayed total, the amount of over-provisioning cannot always be determined by looking only at the capacity shown in File Explorer or Disk Management.
User-Configured Over-Provisioning

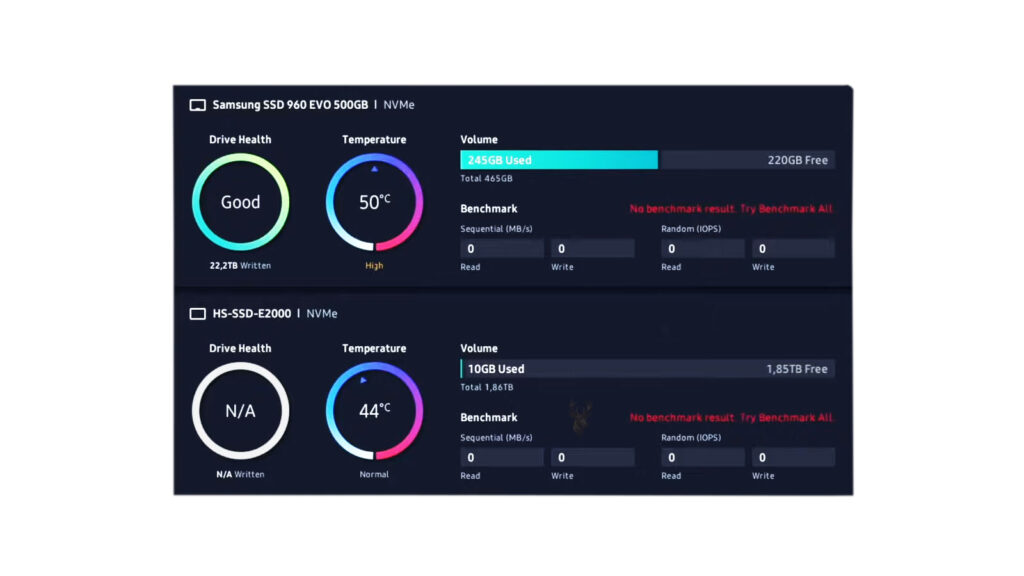

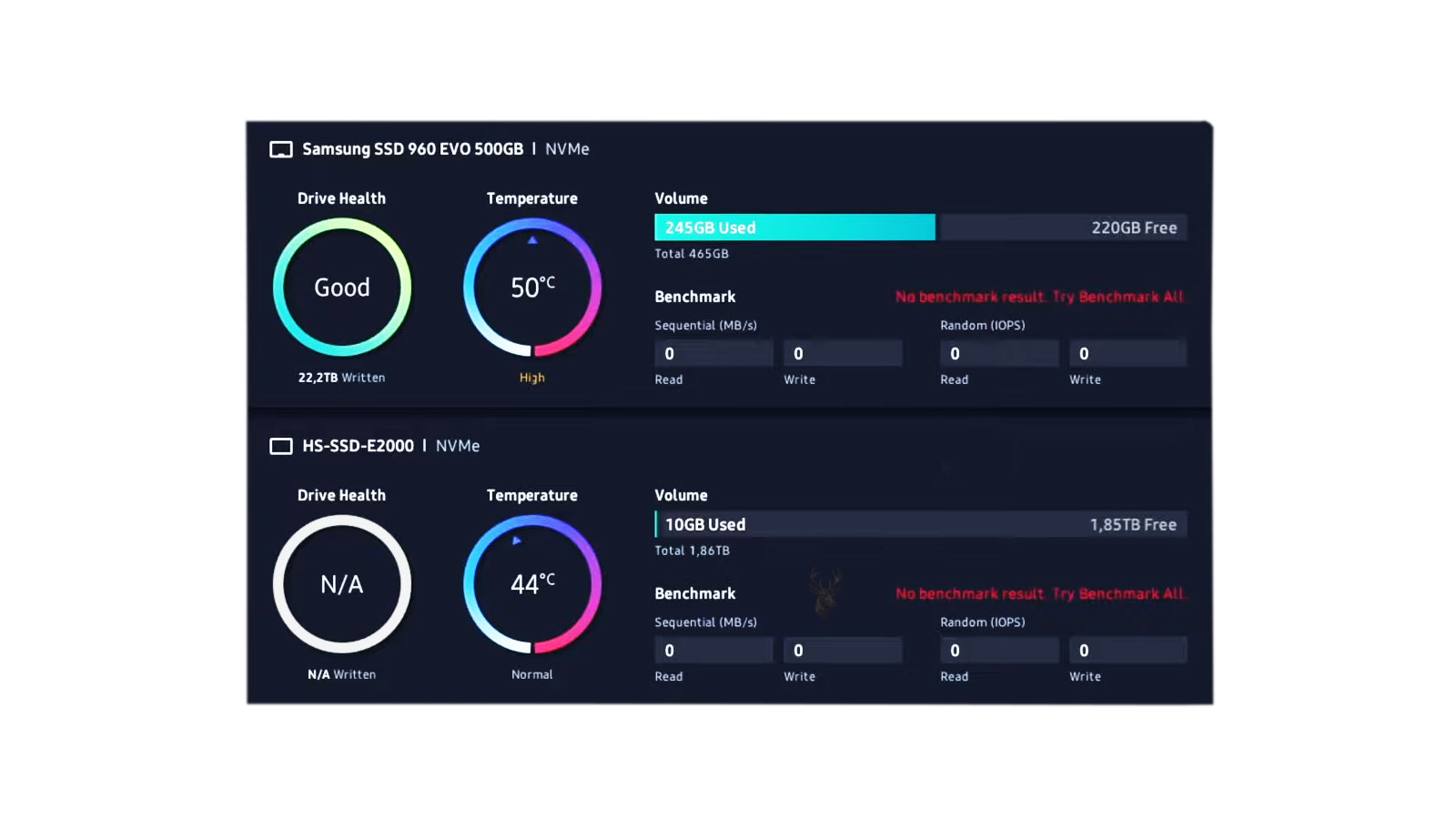

Some SSD management utilities allow a user or technician to reserve additional capacity beyond the amount already set aside by the manufacturer. This is usually done by leaving a portion of the drive unallocated so the controller can use the unused area more freely.
Additional over-provisioning is most useful in systems that perform frequent writes. Database computers, workstations handling large media files, servers, security recording systems, and machines running several virtual environments may place considerably more write pressure on storage than a typical home computer.
For an ordinary computer used for web browsing, documents, email, and light application work, factory provisioning combined with reasonable free space is often sufficient. Reserving a large additional area may provide little noticeable benefit if the drive is not exposed to sustained write activity.
Workloads That Benefit From Additional Reserve Space
The value of extra over-provisioning depends more on workload than on the age of the computer. Two identical SSDs can experience very different conditions depending on the type and volume of data written to them.
| Computer Use | Typical Write Pressure | Potential Benefit |
|---|---|---|
| Basic home computer | Light to moderate | Usually limited |
| Office workstation | Moderate and repetitive | May improve consistency |
| Video editing system | Large sustained writes | Often more useful |
| Virtual machine host | Frequent random writes | Can reduce maintenance pressure |
| Database or server storage | Heavy continuous activity | Potentially significant |
Additional reserve space should not be viewed as a repair for a failing SSD. It can improve the conditions under which a healthy drive operates, but it cannot restore worn flash memory, correct controller faults, or recover data from a damaged drive.
TRIM and the Release of Deleted Storage
Over-provisioning works more effectively when the SSD knows which data is no longer needed. When a file is deleted, the operating system removes its directory reference, but the drive may not immediately recognize that the underlying flash pages can be reused. The TRIM command helps communicate that information.
After receiving a TRIM notification, the SSD can mark the affected pages as invalid and prepare them for future cleanup. This allows garbage collection to work with more accurate information and reduces the amount of unnecessary data that must be preserved during block reorganization.
TRIM does not erase every deleted file instantly, and it does not replace over-provisioning. The two features perform different functions. TRIM identifies storage that no longer contains needed data, while over-provisioning supplies additional space for managing that data efficiently.
| Feature | Primary Function |
|---|---|
| TRIM | Identifies deleted data that no longer needs to be preserved |
| Garbage collection | Consolidates valid data and prepares blocks for reuse |
| Wear leveling | Distributes write activity across available flash memory |
| Over-provisioning | Provides reserved working space for controller operations |
These processes operate together. No single feature is responsible for SSD reliability, and differences in controller design can affect how efficiently a particular drive performs each task.
Leaving Space Unallocated
One method of creating additional reserve capacity is to leave part of the SSD unallocated when partitions are created. Unallocated space does not appear as a normal storage location and cannot be filled with files unless the partition is expanded later.
This method is most dependable when the drive is new or has been securely erased before configuration. On a drive that has already been heavily used, simply shrinking a partition does not guarantee that every newly unallocated flash location is immediately available to the controller. Support for TRIM, the operating system, the partitioning method, and the SSD firmware can all influence the result.
- Confirm that important files are backed up before changing partitions.
- Do not reduce a partition below the amount required for normal system use.
- Leave enough visible capacity for updates, temporary files, and applications.
- Avoid making partition changes solely to correct unexplained performance problems.
- Use the SSD manufacturer’s utility when it provides a supported over-provisioning option.
Partition changes always carry some risk, especially when a drive contains the operating system or irreplaceable information. Additional over-provisioning should be planned rather than added casually after a computer begins showing unrelated symptoms.
Capacity Planning for Everyday Computers
Selecting an SSD with more capacity than the computer immediately requires can provide practical advantages. A larger drive leaves room for future applications and files while making it easier to preserve unused space. It may also contain more flash memory across which the controller can distribute writes.
That does not mean every user needs the largest available drive. Capacity should reflect the actual workload, expected growth, backup plan, and cost. A lightly used computer with modest storage needs may operate reliably for years on a smaller SSD, provided it is not kept continuously near full capacity.
Choosing enough storage at the beginning is usually easier than trying to create working space after the drive has become crowded.
Regular review of stored data can also help. Old installers, duplicate downloads, temporary project files, unused virtual machines, and forgotten backups may consume large amounts of space without providing ongoing value.
Symptoms That Should Not Be Blamed on Over-Provisioning
Because storage performance can decline when an SSD is nearly full, users sometimes assume that every pause, freeze, or startup delay is caused by insufficient reserve space. Many other conditions can produce similar symptoms.
- Background updates: Operating system and application updates can create temporary periods of heavy disk activity.
- Insufficient memory: A computer with limited RAM may rely heavily on virtual memory, increasing storage activity.
- File system problems: Corruption can delay access to files or cause repeated error checking.
- Thermal throttling: Some SSDs reduce performance when their controllers become too hot.
- Controller or firmware faults: Hardware defects can cause freezing, disconnections, or read errors.
- Failing flash memory: Increasing media errors may indicate deterioration rather than ordinary capacity pressure.
A drive that disappears from the system, produces repeated read errors, causes blue screens, or reports serious health warnings should be evaluated as a possible failure. Creating more free space is not an appropriate substitute for backing up important data and diagnosing the storage device.
Monitoring Capacity Without Obsessing Over a Percentage
There is no universal free-space percentage that applies to every SSD. Manufacturers use different controllers, flash types, cache designs, firmware strategies, and factory reserve levels. Workloads also vary considerably from one computer to another.
A practical approach is to avoid operating the drive at or near full capacity for extended periods. The computer should have enough room to complete updates, create temporary files, and handle normal growth without constant cleanup. Systems that write large quantities of data may benefit from a larger margin than computers used mainly for browsing and office documents.
Available space should be considered together with drive health, operating temperature, performance history, and the type of work being performed. A single number cannot describe the condition of the entire storage system.
Protecting Performance Over the Life of the Drive
Over-provisioning is most effective as part of a broader storage strategy. It cannot prevent every failure, but it gives the SSD controller room to manage the limitations of flash memory more efficiently.
- Keep adequate free space available for normal system activity.
- Install firmware updates only when they address a relevant issue and follow the manufacturer’s instructions.
- Maintain backups independently of the SSD’s reported health.
- Avoid unnecessary benchmark testing that writes large amounts of data repeatedly.
- Provide suitable airflow for high-performance drives that generate significant heat.
- Investigate new errors or disconnections instead of assuming they are normal aging.
Backup remains essential because over-provisioning is a reliability feature, not a form of data protection. A controller failure, electrical problem, firmware defect, accidental deletion, or physical damage can make files inaccessible even when the flash memory has not reached its expected wear limit.
A Practical View of Reserved SSD Capacity
The storage that an SSD keeps out of sight performs valuable work. It gives the controller replacement blocks, supports wear leveling, assists garbage collection, and reduces pressure during sustained write operations. These benefits become increasingly important as the drive fills and ages.
For most home and office computers, the best approach is straightforward: choose sufficient capacity, avoid keeping the drive completely full, maintain current backups, and respond promptly to genuine health warnings. Specialized systems with heavy write workloads may justify additional over-provisioning, but the amount should be based on actual use rather than a fixed rule.
Reserved capacity may never appear in a folder or storage chart, yet it remains one of the reasons a modern SSD can continue delivering stable performance after years of writing, deleting, and reorganizing data.
