Ethernet Link Speed Problems and Why Wired Connections Fall Back to 100 Mbps

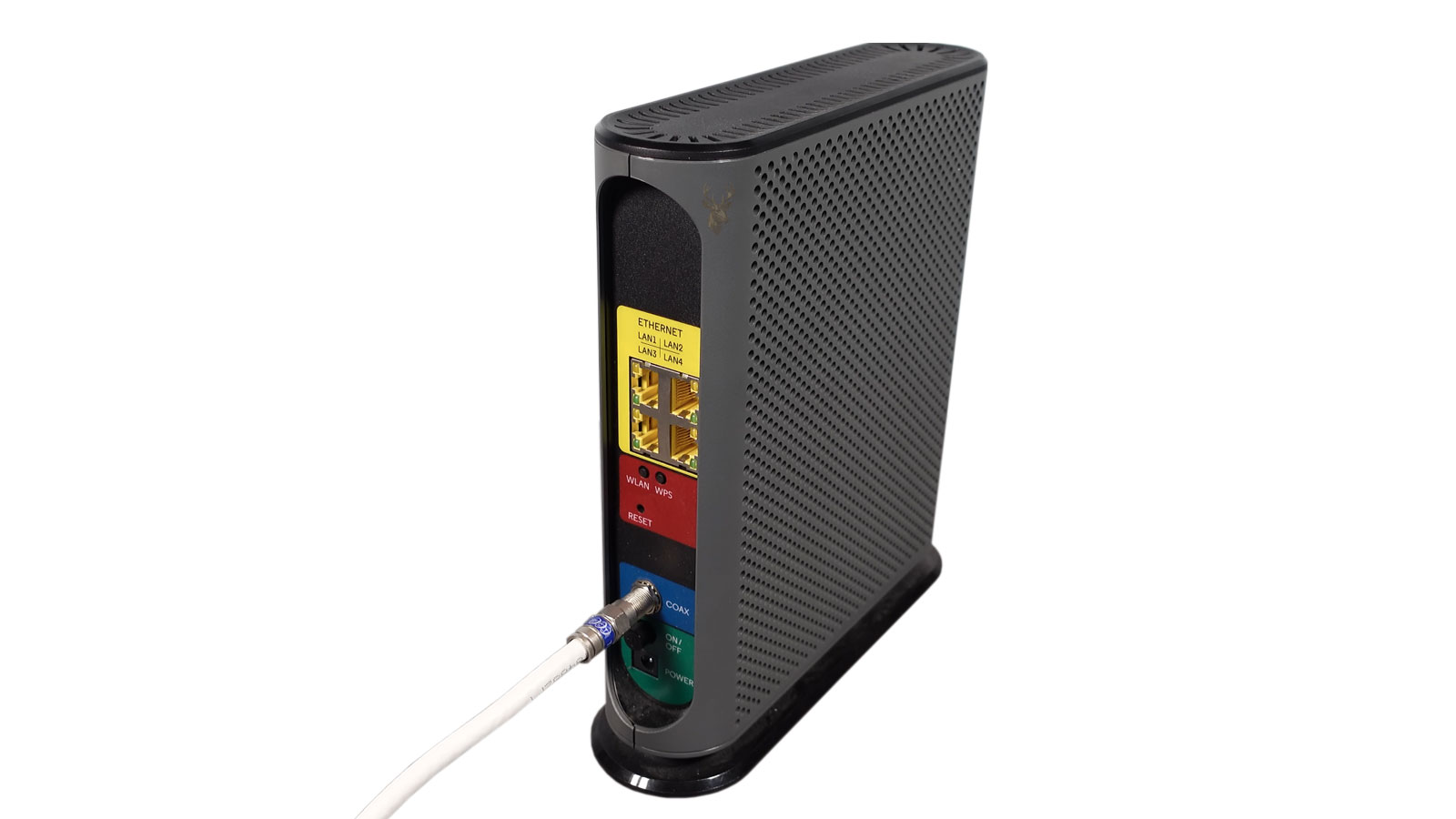

Internet modem with coaxial service connection and four Ethernet LAN ports used to troubleshoot a wired connection limited to 100 Mbps.

Why a Wired Network Connection Can Stop at 100 Mbps

A wired network connection can remain fully functional while operating far below the speed supported by the computer and router. Websites may load, email may continue working, and shared folders may still open, yet Windows reports a link speed of only 100 Mbps instead of 1.0 Gbps.

This does not always indicate a problem with the internet service. The reported Ethernet speed describes the local connection between the computer and the next network device, which may be a router, switch, docking station, wall jack, or adapter. A fast internet plan cannot overcome a local Ethernet link that has negotiated at a lower rate.

When gigabit-capable equipment connects at 100 Mbps, the cause is often somewhere along the physical network path. A cable can appear normal while one internal wire pair is damaged. A wall jack may be connected incorrectly. A docking station may contain an older network controller. In other situations, the port at the opposite end may simply support no more than 100 Mbps.


Ethernet Speed Is Chosen When the Link Is Established

When an Ethernet cable is connected, the devices at both ends communicate before ordinary network traffic begins. They identify the connection modes they support and attempt to select the fastest mode that both sides can use. This process is known as auto-negotiation.

If a computer and switch both support gigabit Ethernet and the cable path is working correctly, the connection will usually establish at 1.0 Gbps. If one endpoint supports only Fast Ethernet, the maximum link speed will be 100 Mbps. The same lower speed may also be selected when the devices support gigabit operation but cannot communicate reliably over all of the required conductors.

The operating speed therefore does not depend on the computer alone. Every component between the two endpoints participates in the result. The network adapter may be capable of gigabit operation, but it cannot create a gigabit link through a limited port or defective cable.


Gigabit Ethernet Uses More of the Cable

A common Ethernet cable contains eight individual conductors arranged as four twisted pairs. A 100 Mbps connection normally uses two of those pairs. Gigabit Ethernet depends on all four.

This difference explains one of the most confusing wired-network problems. A cable can lose one pair and still provide a working 100 Mbps connection. The computer remains online, so the cable may appear to be good. However, the missing or unreliable pair prevents the two devices from establishing the faster gigabit mode.

The damage does not always occur in the middle of the cable. A conductor may fail near the plug, a contact may not sit correctly inside the connector, or a wall jack may have one wire that was never secured properly. Movement can make the condition intermittent, causing the link speed to change when the cable is touched or repositioned.

  • A conductor may be broken inside the cable jacket.
  • A plug may be poorly crimped or partially loose.
  • A wall jack may have an incomplete punch-down connection.
  • A cable may have been crushed under furniture or sharply bent.
  • Contacts may be dirty, corroded, or physically damaged.
  • A cable made for another purpose may not contain all required pairs.

Because a partial cable failure can still provide connectivity, simply confirming that the network works is not enough. The negotiated speed provides an additional clue about the condition of the wiring.


The Printed Cable Category Does Not Prove the Cable Is Good

Category labels describe the performance standard a cable was designed to meet, but they do not confirm that every individual cable is undamaged or properly assembled. Category 5e cabling is commonly capable of gigabit Ethernet, while Category 6 provides additional performance margin when correctly installed.

A poorly terminated Category 6 cable can perform worse than a properly made Category 5e cable. Excessive untwisting near a connector, incorrect conductor order, weak contacts, or low-quality plugs can interfere with signal quality even though the cable jacket carries a suitable category marking.

Homemade cables deserve particular attention. The connector may look correct from the outside while one conductor stops short of the metal contact. Both ends may also use inconsistent wiring arrangements. Some mistakes prevent the link entirely, while others allow a slower connection that masks the fault.

A practical comparison is to replace the installed cable temporarily with a short cable already known to establish a gigabit connection. If the reported speed immediately changes from 100 Mbps to 1.0 Gbps, the original cable or part of the permanent wiring path becomes the leading suspect.


Older Network Ports May Be Working Exactly as Designed

A 100 Mbps link is not always evidence of damage. Many older routers, switches, printers, powerline adapters, televisions, and docking stations were manufactured with Fast Ethernet ports. When a modern computer connects to one of these devices, 100 Mbps is the correct result.

This can be overlooked when the device has other specifications that sound fast. A wireless router may advertise a much higher wireless rate while its wired ports remain limited to 100 Mbps. A USB adapter may have a modern connector while the Ethernet controller inside it supports only Fast Ethernet.

Specifications should be checked for both endpoints. The network adapter inside the computer may support 1.0 Gbps, but the connected switch port must support the same speed. Any intermediate device must also be examined when the connection passes through a dock, adapter, coupler, or wall-mounted network unit.

If the slowest component is rated for 100 Mbps, replacing drivers or resetting Windows will not increase the negotiated speed. The hardware limitation must be removed or bypassed before a gigabit link can be established.


Building Wiring Creates Failure Points That Are Easy to Miss

A computer in an office may not connect directly to the network switch. A short patch cable may run from the computer to a wall jack. Permanent cable continues through the building to a patch panel, and another patch cable connects the panel to the switch.

Every transition adds another place where a conductor can be loose, crossed, damaged, or incomplete. The cable visible beside the computer may be in perfect condition while the actual fault is behind the wall plate or at the patch panel.

One useful test is to connect the computer directly to the switch with a verified cable. If the direct connection negotiates at gigabit speed while the normal wall connection remains at 100 Mbps, the computer and switch are less likely to be responsible. Attention can then move to the wall jack, permanent cable, patch-panel termination, and patch cables used in the original route.

A basic continuity tester can show whether each conductor reaches the opposite end, but more advanced cable faults may require better testing equipment. Split pairs and signal-quality problems can exist even when all eight conductors appear to be connected.


Consistent and Intermittent Speed Changes Point in Different Directions

The way the connection behaves can help distinguish a permanent limit from a developing fault. A link that always establishes at 100 Mbps may be connected to a Fast Ethernet port, restricted by an adapter setting, or missing one of the wire pairs needed for gigabit operation.

A connection that alternates between 100 Mbps and 1.0 Gbps suggests a less stable condition. A connector may shift inside the port, a conductor may be making inconsistent contact, or the cable may be operating near the edge of acceptable signal quality.

Movement is an especially useful clue. If the reported speed changes when the cable is touched near one connector, that area should be examined before software settings are changed. A physical problem that responds to movement is unlikely to be corrected by reinstalling the network driver.

Repeated disconnections can also accompany a marginal cable. The devices may establish gigabit operation briefly, encounter too many communication errors, lose the link, and negotiate again. In some cases, the reconnection returns at 100 Mbps because the lower mode is more tolerant of the damaged path.


The First Tests Should Separate the Computer from the Cable Path

Early troubleshooting should avoid changing many settings at once. The most useful first step is to confirm the current link speed and then compare the connection with a small number of known-good components.

  1. Confirm that both Ethernet ports are designed to support gigabit speed.
  2. Record the speed reported before making changes.
  3. Replace the patch cable with one already verified at 1.0 Gbps.
  4. Test a different gigabit-capable switch or router port.
  5. Bypass wall wiring, docks, couplers, and adapters when possible.
  6. Compare the same network path with another gigabit-capable computer.

These comparisons reveal whether the lower speed follows the computer or remains with the original network path. Once that distinction is clear, later testing can focus on the adapter, driver, port, cable, or building wiring without replacing unrelated components.


Speed and Duplex Settings Can Quietly Hold the Link Back

Ethernet adapters are normally designed to select their speed and duplex mode automatically. When both ends of the connection are left on automatic settings, the computer and switch can compare their supported modes and choose the fastest compatible option.

A manually forced setting can interfere with that process. An adapter left at 100 Mbps full duplex will continue connecting at that speed even when the cable and switch support gigabit Ethernet. This sometimes happens after an earlier troubleshooting attempt or after software from the adapter manufacturer changes an advanced setting.

Adapter SettingHow It Can Affect the Connection
Auto NegotiationAllows both devices to select the fastest compatible speed and duplex mode.
100 Mbps Full DuplexCreates a stable connection but prevents gigabit negotiation.
100 Mbps Half DuplexRestricts speed and can cause poor performance when traffic increases.
Forced 1.0 GbpsMay fail completely when the cable path cannot support gigabit signaling.

Duplex mismatches can be harder to recognize because the link may remain active. Small downloads may work normally, while large transfers fluctuate, uploads perform differently from downloads, and communication slows whenever both devices send data at the same time.

Returning the adapter to automatic negotiation is usually the correct starting point unless both ends are intentionally managed. Forcing a higher speed should not be used to cover up damaged cabling or a limited switch port.


The Driver Controls More Than Basic Network Access

The operating system depends on a driver to identify the Ethernet controller and expose its available settings. A generic driver may provide basic connectivity while leaving out manufacturer-specific options related to negotiation, power management, wake behavior, or diagnostic reporting.

Driver problems are less common than cable faults when a connection remains fixed at 100 Mbps, but they become more relevant when the issue begins after an operating-system update, motherboard replacement, docking-station change, or manual driver installation.

  • The adapter name appears incorrectly or changes after an update.
  • Advanced speed and duplex settings disappear.
  • The connection repeatedly drops and reconnects.
  • The adapter works after startup but fails after sleep.
  • A dock or USB adapter behaves differently from the built-in port.

The exact controller model should be identified before installing replacement software. Two laptops from the same manufacturer may use different Ethernet chipsets, and a docking station may require a completely separate driver from the laptop itself.


USB Ethernet Adapters Have Two Separate Performance Paths

A USB Ethernet adapter sits between the computer and the network. One side communicates through USB, while the other side negotiates an Ethernet link through the network cable. Either side can become the limiting factor.

An adapter may report a 1.0 Gbps Ethernet link but still transfer data below expected gigabit performance because it is connected through an older USB port, a crowded hub, or a low-quality adapter chipset. The reverse can also happen: the USB side is fast enough, but the Ethernet side falls back to 100 Mbps because of the cable or switch port.

Testing should begin with the adapter connected directly to the computer. Hubs, extension cables, and docking accessories should be removed temporarily so they do not add another unknown condition.

  1. Confirm that the adapter itself supports gigabit Ethernet.
  2. Connect it directly to a suitable USB port.
  3. Use a cable already verified at 1.0 Gbps.
  4. Install the correct chipset driver.
  5. Compare the result with another adapter or built-in Ethernet port.

The Ethernet link speed and the actual transfer rate should be evaluated separately. A slow file copy does not automatically mean the adapter negotiated at 100 Mbps.


Docking Stations Can Create a Problem That Appears to Belong to the Laptop

The Ethernet jack on a docking station is often connected to a network controller inside the dock. It may not use the laptop’s internal Ethernet hardware at all. This means the dock has its own chipset, driver, firmware, and physical port that can fail independently.

A laptop may reach gigabit speed through a direct adapter while the dock remains at 100 Mbps with the same cable and switch port. That comparison strongly shifts attention toward the dock, its firmware, or the connection between the dock and laptop.

If both the direct adapter and dock remain at 100 Mbps, the shared cable and network port should be tested before the dock is replaced. Keeping one part of the path unchanged while another part is swapped produces a much clearer result than changing several components together.

A dock should be treated as a separate network device, not simply as an extension of the laptop.


Energy-Saving Features May Affect Reconnection and Wake Behavior

Some Ethernet controllers and switches reduce power use when network activity is low. These features may appear under names such as Energy-Efficient Ethernet, Green Ethernet, or power-saving mode.

They are not usually responsible for a permanent 100 Mbps connection, but they can contribute to delayed link establishment, repeated reconnection, or unusual behavior after the computer wakes from sleep. Certain driver and firmware combinations handle these features better than others.

Temporarily disabling an energy-saving option can be useful when the link changes speed after sleep or repeatedly turns off and on. It is less useful when the connection is always stable at exactly 100 Mbps, because that pattern points more strongly toward a hardware limit, cable problem, or manual speed setting.


A Gigabit Link Does Not Guarantee Gigabit File Transfers

The link speed shown by Windows describes the signaling rate between the Ethernet adapter and the next network device. It does not guarantee that every file transfer will reach the theoretical maximum.

Storage speed, processor load, antivirus scanning, file size, network overhead, and the performance of the other computer all affect the final result. A healthy gigabit link may still appear slow when one of the storage devices cannot read or write data quickly enough.

The measurement units also cause confusion. Ethernet speed is usually shown in megabits per second, while file-copy programs often display megabytes per second. A 100 Mbps link has a theoretical maximum of about 12.5 megabytes per second before protocol overhead is considered.

A large file copying near 11 megabytes per second often matches the expected behavior of a healthy 100 Mbps connection. The same transfer rate on a reported 1.0 Gbps link suggests that another component is restricting throughput.


Internet Speed Tests Measure Too Much to Isolate One Ethernet Cable

An online speed test measures the entire route between the computer and a remote server. That route includes the local Ethernet connection, router, modem, internet provider, external network conditions, and the test server itself.

A 100 Mbps Ethernet link will restrict a much faster internet plan, but a slower subscription can hide the problem. Someone with a 50 Mbps plan may receive the full subscribed rate even though the local wired link has fallen from gigabit to 100 Mbps.

A normal internet speed result does not prove that the local Ethernet connection is operating at gigabit speed.

A local file transfer between two capable wired computers provides a more focused comparison. Dedicated throughput-testing software can also measure the network without depending on internet service, although the devices at both ends still need enough processing and storage performance to handle the test.


Some Damaged Cables Still Negotiate at 1.0 Gbps

A cable does not have to fall back to 100 Mbps before it can cause trouble. A marginal connection may establish at gigabit speed and then produce corrupted frames, retransmissions, pauses, or brief disconnections when traffic increases.

Light browsing may appear normal because it does not place sustained demand on the link. A large backup, file transfer, or network installation can expose errors that were not visible during ordinary use.

  • Transfer speed rises and falls without a clear pattern.
  • The link disconnects only during heavy traffic.
  • Network errors increase on one switch port.
  • The problem disappears with a shorter cable.
  • Moving the connector changes the behavior.

Managed switches may record discarded frames, communication errors, and repeated link changes. A counter that continues increasing during a controlled test is more meaningful than a small historical total that has not changed.

Comparing the same computer through another cable and switch port can show whether the errors follow the computer or remain with the original network path.


Switch Indicators Can Reveal the Negotiated Speed Before Testing Begins

Many routers and switches use indicator lights to show whether a port has established a connection and whether traffic is passing through it. Some models also use different colors to distinguish a 100 Mbps link from a gigabit link.

The meaning of each color varies by manufacturer, so the device documentation should be checked before drawing a conclusion. A green light may represent gigabit speed on one switch and ordinary link activity on another.

  • A steady link light confirms that the two devices can detect each other.
  • A different color may indicate that the negotiated speed has changed.
  • A light that repeatedly turns off and on can point to an unstable connection.
  • Normal blinking shows traffic activity but does not prove that the cable is error-free.
  • No light may indicate an inactive port, disconnected pair, failed adapter, or unpowered device.

Indicator lights are most useful during comparison testing. If the light changes when the same computer is connected through another cable or port, the change provides an immediate clue about which part of the path may be responsible.


Changing One Component at a Time Preserves the Evidence

Replacing the cable, changing the switch port, updating the driver, resetting the router, and modifying adapter settings during the same attempt may restore the connection, but it also hides the original cause. Once several variables have changed together, there is no reliable way to know which one corrected the problem.

A controlled test keeps most of the path unchanged while one component is substituted. The reported speed is checked after each change, and the result determines the next direction.

  1. Record the current link speed and note whether the connection is stable.
  2. Replace only the cable with one already verified at gigabit speed.
  3. Reconnect to a different gigabit-capable switch or router port.
  4. Bypass the wall jack, dock, coupler, or intermediate switch when possible.
  5. Test another computer through the same network path.
  6. Test the original computer on a separate known-good connection.

If the lower speed follows the computer, attention shifts toward its adapter, driver, dock, or settings. If the problem remains with the original cable route, the computer becomes less likely to be responsible.


A Spare Cable Is Not Automatically a Known-Good Cable

A cable taken from a drawer may look unused and still be a poor diagnostic reference. It may have an unknown history, an internal break, a weak connector, or only enough working pairs to support a 100 Mbps device.

A reliable comparison cable is one that has already established a stable 1.0 Gbps connection between known-compatible devices. A short cable is especially useful because it can connect the computer directly to the switch while bypassing wall wiring and intermediate hardware.

A cable becomes a useful test reference only after its gigabit capability has been confirmed.

The locking tab and connector fit also matter. A plug that moves loosely inside the port may interrupt contact when the cable is touched. A damaged tab may allow the connector to slide outward far enough to affect one or more conductors without disconnecting the link completely.

Keeping one verified cable labeled for testing prevents an uncertain replacement cable from introducing another fault into the diagnosis.


The Computer-to-Switch Link May Not Be the Slowest Part of the Route

A computer can report a 1.0 Gbps connection while communication with another device remains much slower. The displayed speed usually describes only the local segment between the computer and the next network device.

Traffic may continue through another switch, a router, a wireless bridge, a powerline adapter, or an older uplink. Any slower segment farther along the route can limit the final transfer even though the computer’s own Ethernet connection is healthy.

Observed ResultWhat It May Indicate
The computer reports 1.0 Gbps, but all devices on one small switch are slowThe switch uplink may be limited to 100 Mbps or heavily shared.
Local transfers are fast, but internet performance is poorThe restriction may be beyond the local Ethernet segment.
Transfers to one storage device are slowThe storage system, its network port, or its disks may be the bottleneck.
Only traffic crossing a wireless bridge is slowThe wireless portion may be limiting the wired devices behind it.
Every device connected through one adapter is restrictedThe adapter or intermediate connection may have a lower maximum speed.

Following the route from source to destination prevents a healthy local link from being blamed for a restriction that exists several devices away.


Powerline Adapters Separate Ethernet Port Speed from Electrical-Link Speed

Powerline networking uses a building’s electrical wiring to carry data between adapters. The computer connects to the nearby powerline unit through Ethernet, but the connection between the two powerline units travels through the electrical system.

The Ethernet port may negotiate at 1.0 Gbps even when the electrical path delivers far less. Distance, circuit layout, appliances, wiring quality, and electrical noise can all reduce the actual throughput between powerline adapters.

  • The computer-to-adapter cable has its own negotiated Ethernet speed.
  • The adapter-to-adapter electrical connection has a separate operating rate.
  • Surge protectors and power strips can interfere with some powerline products.
  • Performance may change when high-power appliances are operating.
  • Adapters on different circuits may communicate less efficiently.

A gigabit link shown by the computer therefore confirms only the short cable connection to the nearby powerline adapter. It does not prove that the rest of the powerline route is delivering gigabit performance.


Network Resets Cannot Correct a Physical Pair Failure

Resetting the network configuration can help when protocol settings are damaged, an adapter stops responding after an update, or software changes interfere with normal connectivity. It cannot repair a broken conductor, loose wall termination, limited switch port, or damaged connector.

If the connection returns at exactly 100 Mbps after every reset, the repeated result is useful evidence. It suggests that the endpoints are consistently selecting the same lower mode rather than being affected by a temporary software condition.

A reset becomes more relevant when the adapter disappears, refuses to initialize, reports incorrect configuration, or behaves differently after a driver change. It is less relevant when a verified gigabit adapter connects normally but never rises above 100 Mbps through one particular cable path.

Software troubleshooting should follow the evidence instead of replacing basic cable and port testing.


A Cable Tester Can Confirm More Than Visual Inspection

Visual inspection can reveal crushed cable sections, broken locking tabs, bent contacts, or obvious connector damage. It cannot confirm that every conductor reaches the opposite end correctly.

A basic wire-map tester can identify open conductors, crossed wires, shorts, and incorrect pin order. This can be enough to find a missing pair that allows 100 Mbps operation but prevents gigabit negotiation.

More advanced testers can measure cable length, identify the approximate location of a fault, and evaluate whether the installation meets a particular performance standard. This becomes especially valuable when the problem is inside permanent building wiring that cannot be replaced as easily as a patch cable.

A basic continuity result still has limits. All eight conductors may appear connected while excessive untwisting, poor pairing, interference, or weak termination reduces signal quality. A cable that passes a simple wire map may therefore require further testing when gigabit performance remains unstable.


The Final Diagnosis Should Explain Why the Link Chose 100 Mbps

A useful diagnosis does more than confirm that the connection is slower than expected. It identifies which component prevented the endpoints from establishing gigabit operation.

If a short verified cable produces a 1.0 Gbps link, the computer adapter and switch port have demonstrated that they can negotiate correctly. The removed wall wiring, patch cable, coupler, or dock then becomes the more likely source of the limitation.

If the connection remains at 100 Mbps through a direct known-good cable, the port specifications, adapter configuration, driver, and hardware capability should be examined. Testing another computer on the same switch port can help determine which endpoint carries the problem.

  • A consistent 100 Mbps result can indicate a fixed limitation or a missing cable pair.
  • A speed that changes when the cable moves suggests unreliable physical contact.
  • A dock-only problem points toward the dock’s controller, firmware, or host connection.
  • A gigabit link with poor transfers points beyond negotiation toward errors or another bottleneck.
  • A direct gigabit result shifts attention toward the bypassed wiring and intermediate devices.

Each result should reduce the number of possible causes. Repeating broad resets or replacing unrelated equipment does not provide the same level of certainty.


A 100 Mbps Link Is a Clue About the Complete Wired Path

When two gigabit-capable devices connect at 100 Mbps, the lower speed shows that Ethernet communication is working but that the full gigabit requirements were not met. The reason may be a missing wire pair, a damaged connector, an older port, a forced setting, or an intermediate device with a lower maximum speed.

The most effective troubleshooting starts with the reported link speed, verifies the capabilities at both ends, and then simplifies the path. A short known-good cable and a direct connection can eliminate several unknowns immediately.

From there, controlled comparisons can show whether the limitation follows the computer, remains with the original cable route, or appears only through a dock, wall jack, switch, or adapter. The same method also separates a negotiation problem from slow storage, internet limitations, and bottlenecks elsewhere in the network.

Ethernet speed is the result of every component between the two connected ports. Treating the connection as a complete path makes it possible to find the actual restriction without confusing a working 100 Mbps fallback with a healthy gigabit installation.

From the same category
